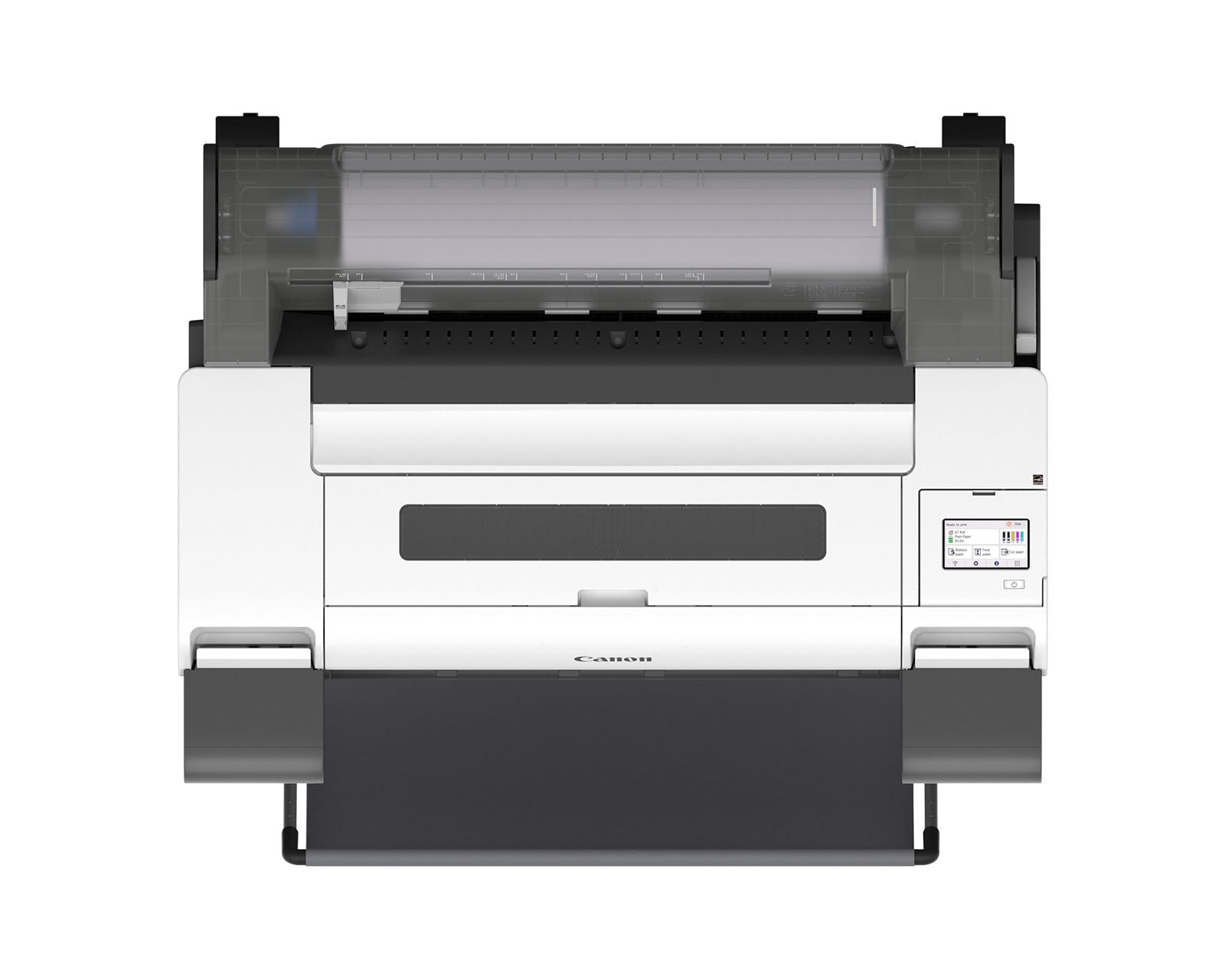

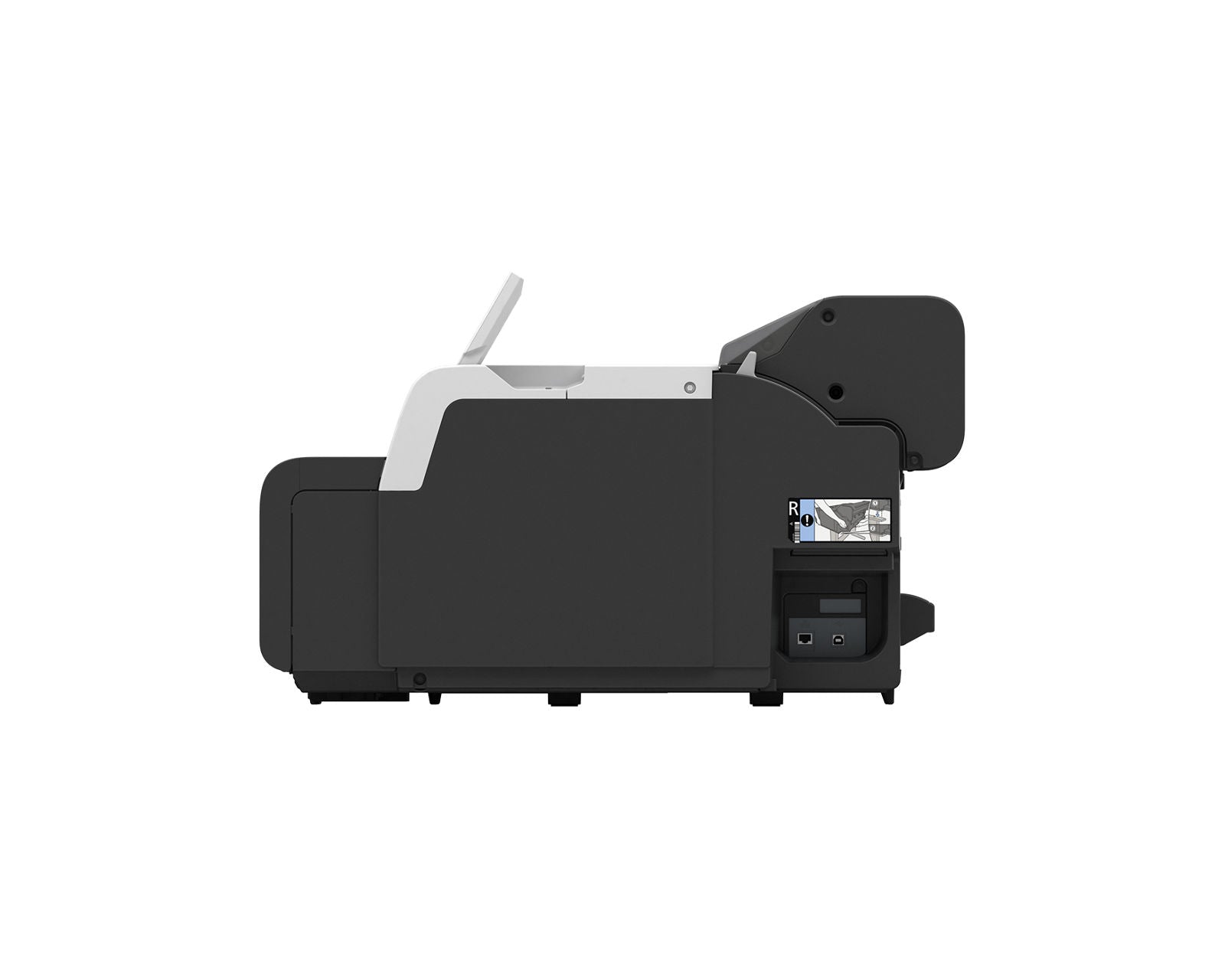

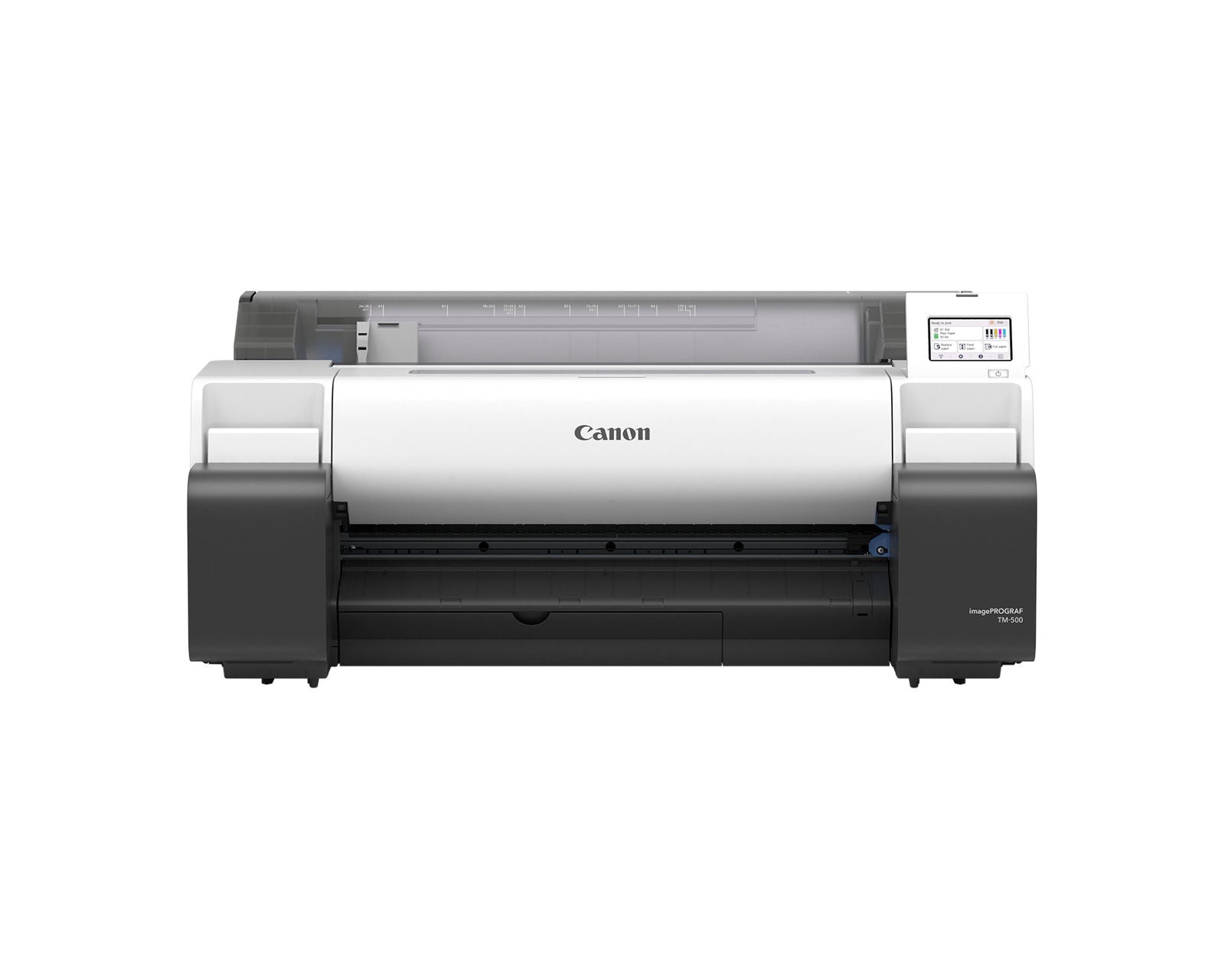

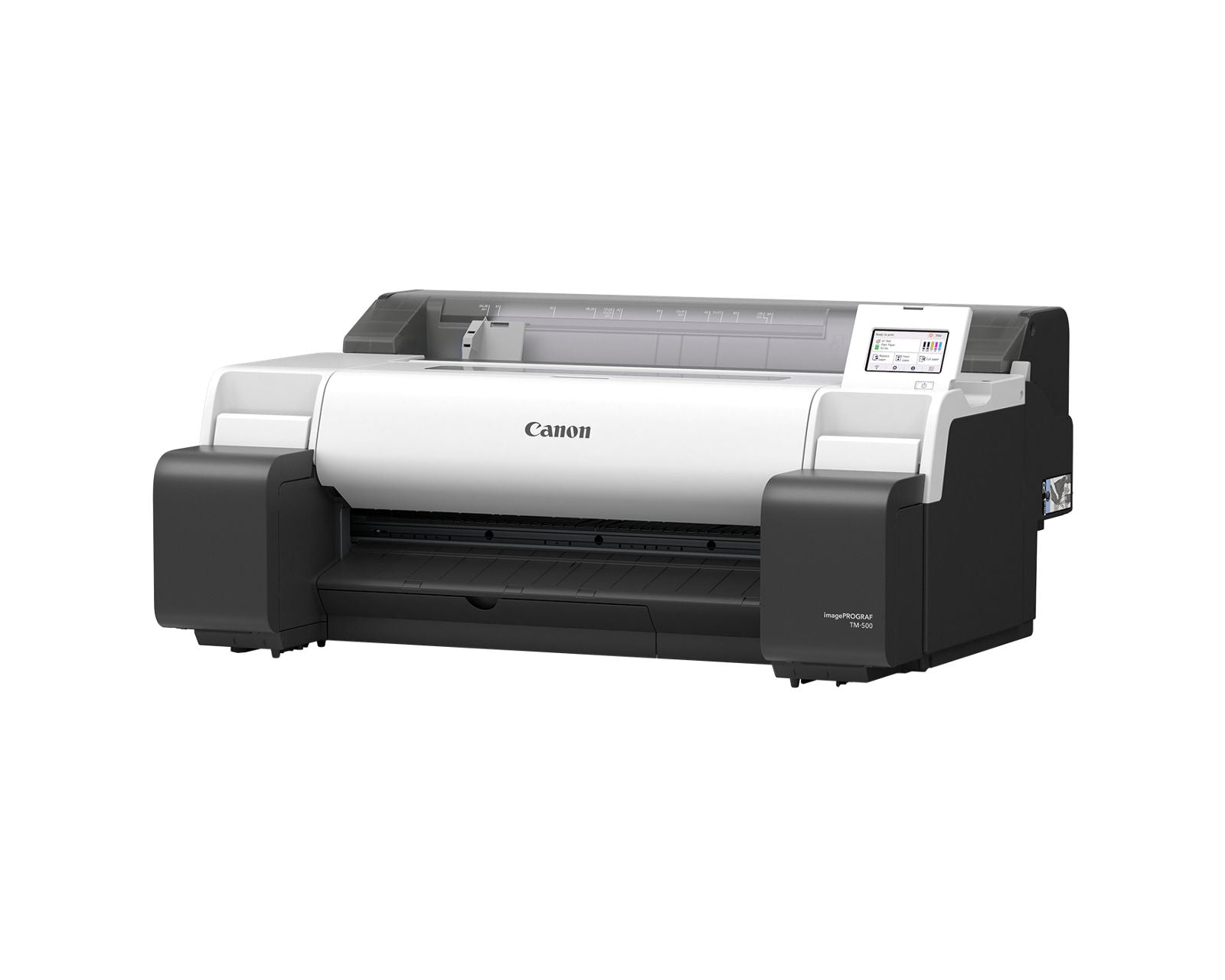

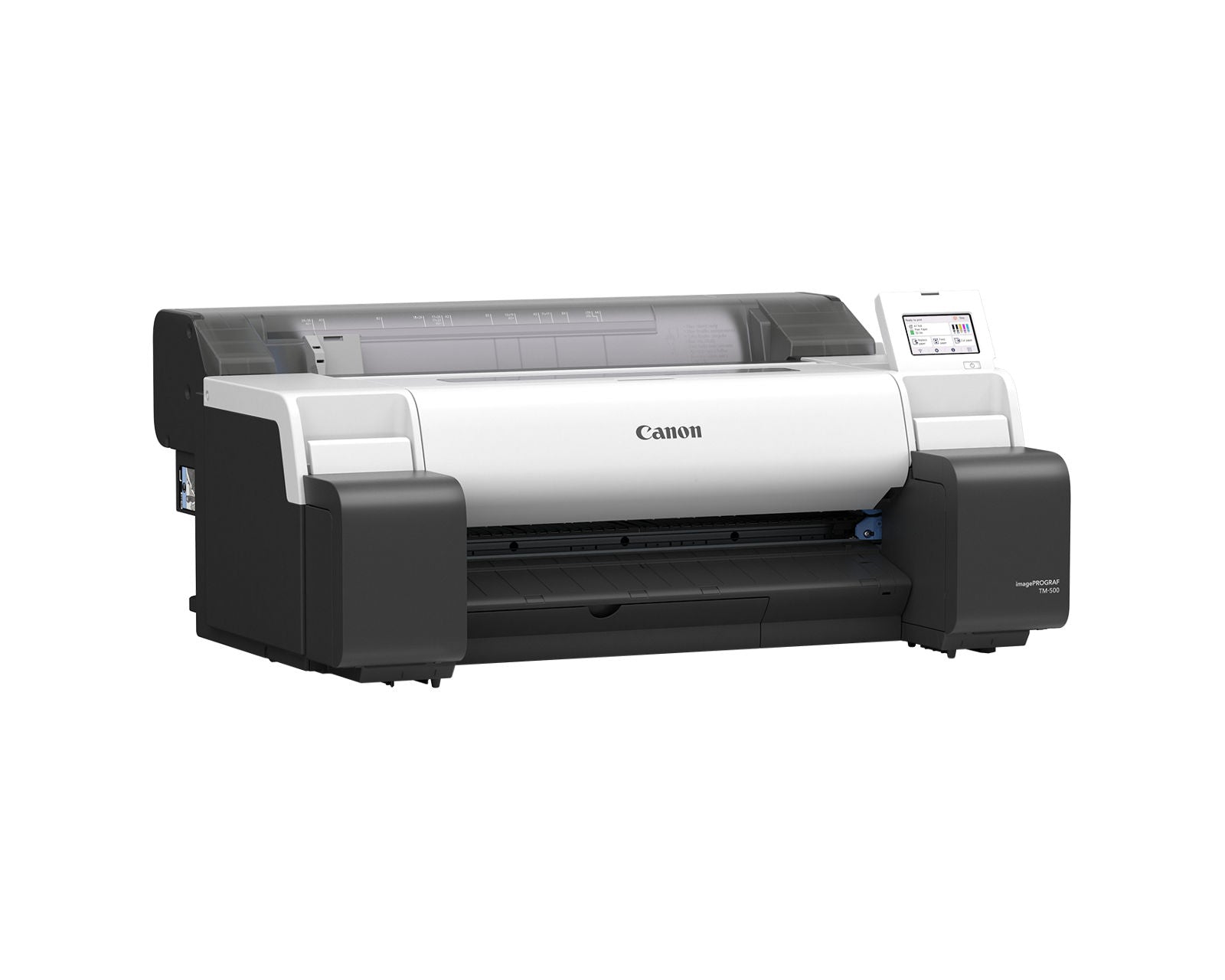

Canon imagePROGRAF TM-500 24-inch Large Format Printer
7448C002AA
Regular price $1,539.00 Sale price $1,435.00 Save $104.00Compact large-format printing for plans, drawings, and posters. The Canon imagePROGRAF TM-500 brings 24-inch color output to offices, studios, schools, and retail spaces. Five-color LUCIA TD pigment inks and updated matte black support fine lines, readable text, and vivid graphics. A/E Graphics is a Canon authorized dealer.
Built for everyday technical printing
- Produce up to 2.4 D-size prints per minute.*
- Print detailed CAD drawings, blueprints, maps, and low-coverage posters.
- Adjust settings on the tilting 4.3-inch touchscreen.
- Load paper from the flat top and access supplies from the front.
- Calibrate color and automatically detect loaded media characteristics.
Configuration: The base TM-500 package includes the printer. The SD-24 stand and catch basket, BU-07 desktop basket, and RH2-28 2-/3-inch roll holder set are optional accessories sold separately. Product imagery may show optional equipment.
Features
Pigment color for drawings and graphics
The LUCIA TD ink system supports durable output, with updated matte black formulated for clear text and linework.
Defined technical detail
Refined image processing helps reproduce fine CAD detail and colorful poster graphics.
Repeatable color
Built-in calibration helps maintain consistency over time and across compatible TM Series devices.
Entry-level CAD productivity
Fast plan output supports small offices and teams that need convenient in-house large-format printing.
Access and network protection
TM Series security capabilities help protect device access and information. Effectiveness depends on setup and environment.
Front-access operation
Reach inks, paper, and maintenance supplies from the front, and view settings on the adjustable screen.
Simple roll loading
Load the spindle, feed the roll, and view detected media type, width, and estimated remaining paper on screen.
Technical specifications
| Maximum print width | 24 in. |
|---|---|
| Print resolution | Up to 2400 × 1200 dpi |
| Print speed | Up to 2.4 ANSI D pages/min.* |
| Ink system | Five-color LUCIA TD pigment: MBK, BK, C, M, Y |
| Touchscreen | 4.3-inch tilting display |
| Printhead / memory | PF-06 / 2 GB |
| Nozzles / droplet size | 15,360 total / 5 picoliters |
| Media feed | Single roll, top loading, front output |
| Media width | Rolls and sheets: 8–24 in. |
| Media thickness | 0.07–0.8 mm |
| Maximum print length | Roll: 59 ft.; sheet: 5.2 ft. |
| Roll core / outside diameter | 2 in. standard / up to 5.9 in. |
| Cutter | Automatic rotary cutter |
| Connectivity | USB 2.0, Gigabit Ethernet, Wi-Fi 802.11 b/g/n |
| Print languages | SGRaster, HP-GL/2, HP RTL, JPEG, CALS G4 |
| Dimensions without stand/basket | 38.5 W × 28.3 D × 16.6 H in. |
| Weight without stand/basket | Approximately 88.2 lb. |
| With optional stand/basket | 38.5 × 34.2 × 41.0 in.; 112.4 lb. |
| Package, main unit with pallet | 45.4 × 35.9 × 25.6 in.; 160.9 lb. |
| Power supply | AC 100–240 V, 50–60 Hz |
| Power consumption | 59 W maximum; 1.6 W standby; 0.06 W off |
| Operating environment | 59–86°F; 10–80% RH, noncondensing |
Included with the printer
Main unit; PF-06 printhead; starter inks (80 ml matte black and 55 ml each black, cyan, magenta, and yellow); installed maintenance cartridge; 2-inch roll holder; power cable and screw; installation, registration, printer/printhead warranty, safety, and software documentation.
Software and mobile printing
Canon supplies Direct Print Plus, Free Layout Plus, PosterArtist, Accounting Manager, Device Management Console, and Media Configuration Tool. AirPrint and Mopria support compatible devices and network configurations. Check current drivers for operating-system compatibility.
PosterArtist
Design posters from browser-based templates.
Media options
Select compatible media for technical documents and graphics.
Supplies and optional service
The September 2026 TM-500 spec sheet lists 55 ml replacement inks: PFI-033 matte black, PFI-030 black/cyan/yellow, and PFI-031 magenta. Service items include the PF-06 printhead, MC-31 maintenance cartridge, and CT-08 cutter blade. Optional eCarePAK plans extend eligible service coverage and are sold separately.
Environmental certifications
Canon identifies the TM-500 as EPEAT Gold registered in the U.S. and ENERGY STAR certified.
Canon resources
*Canon measures 2.4 ANSI D pages/minute after the first print in Fast Q5 mode on plain paper. Actual throughput varies with media, orientation, settings, and copy quantity. Illustrations may show other configurations, optional equipment, or simulated output. Specifications may change.
