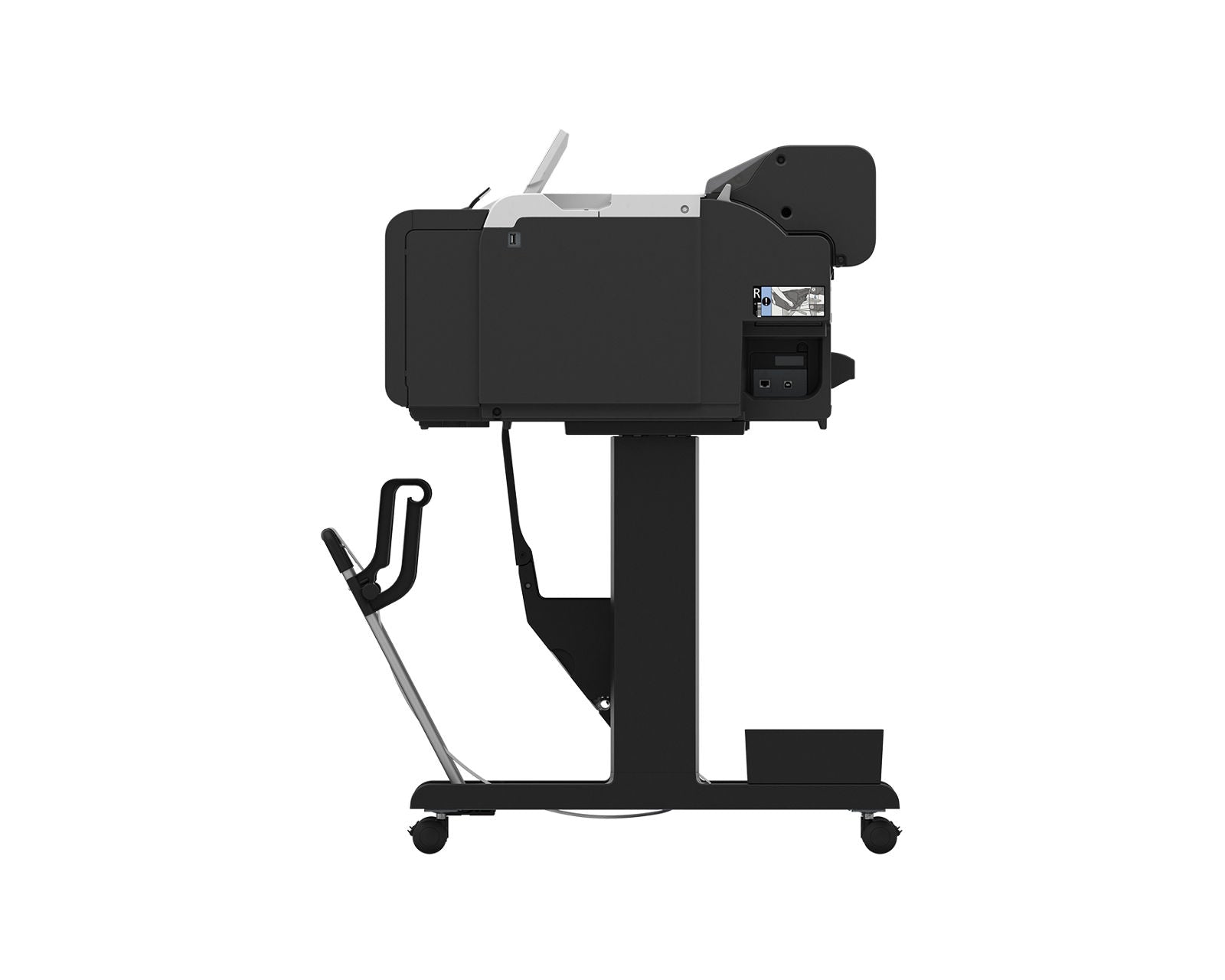

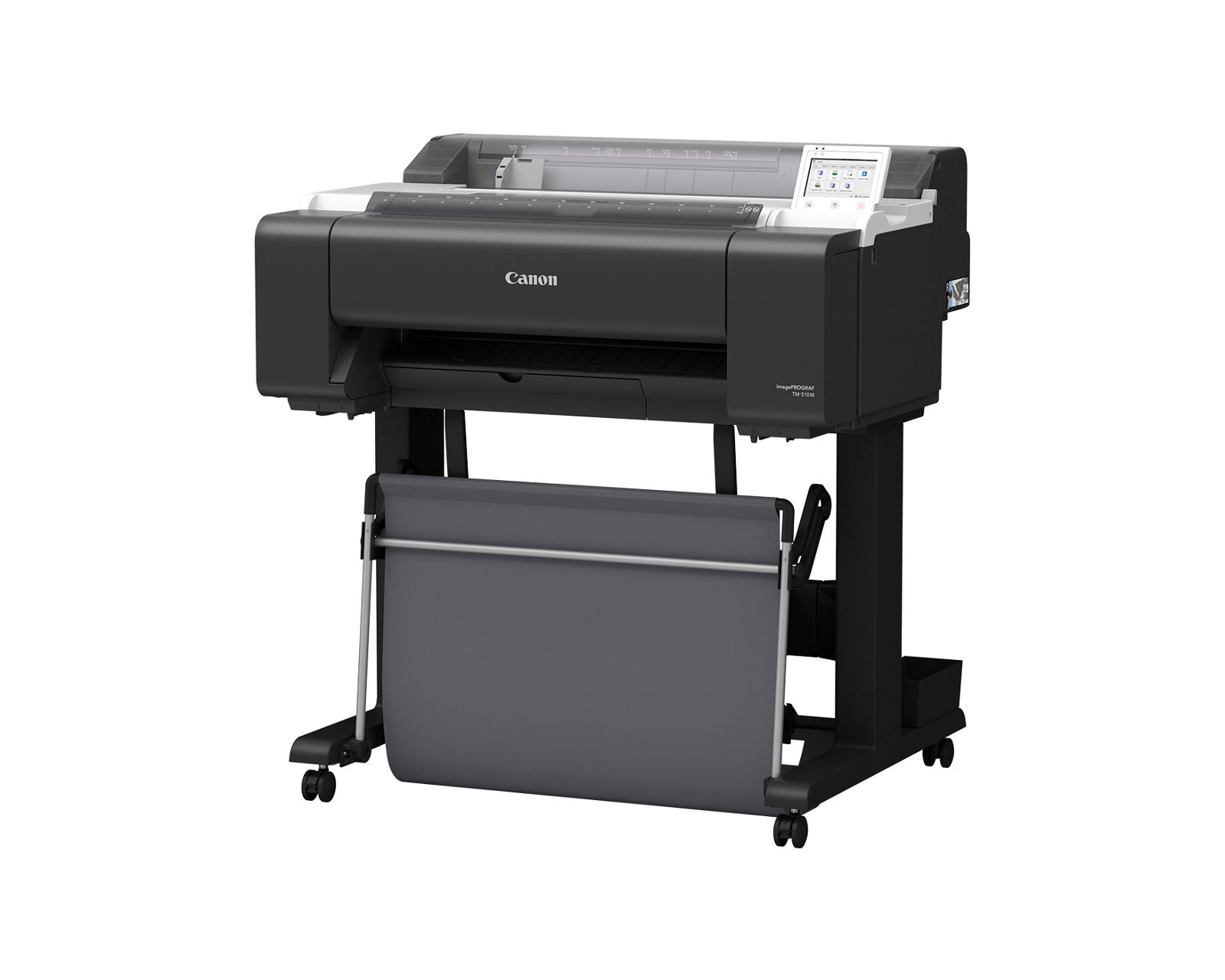

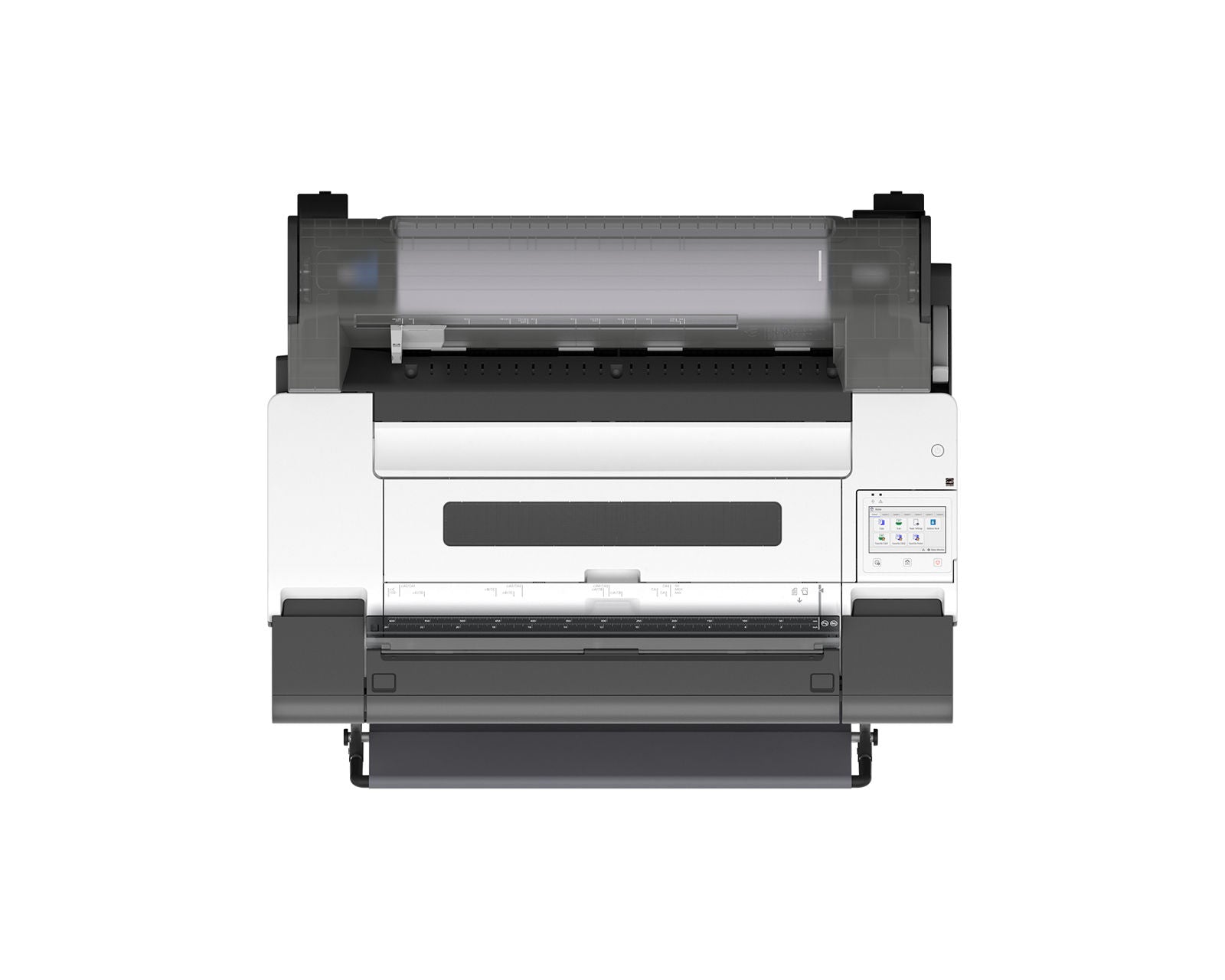

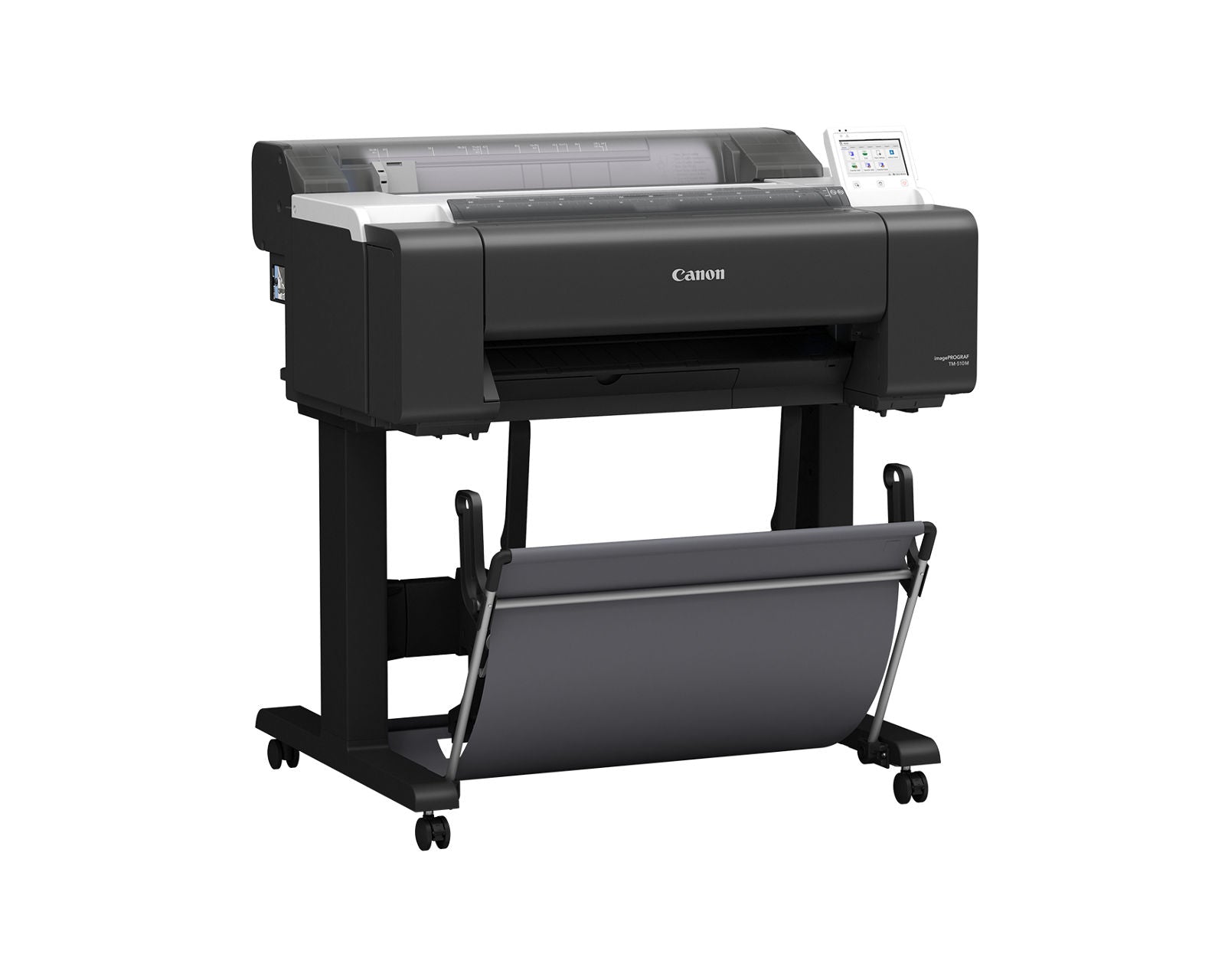

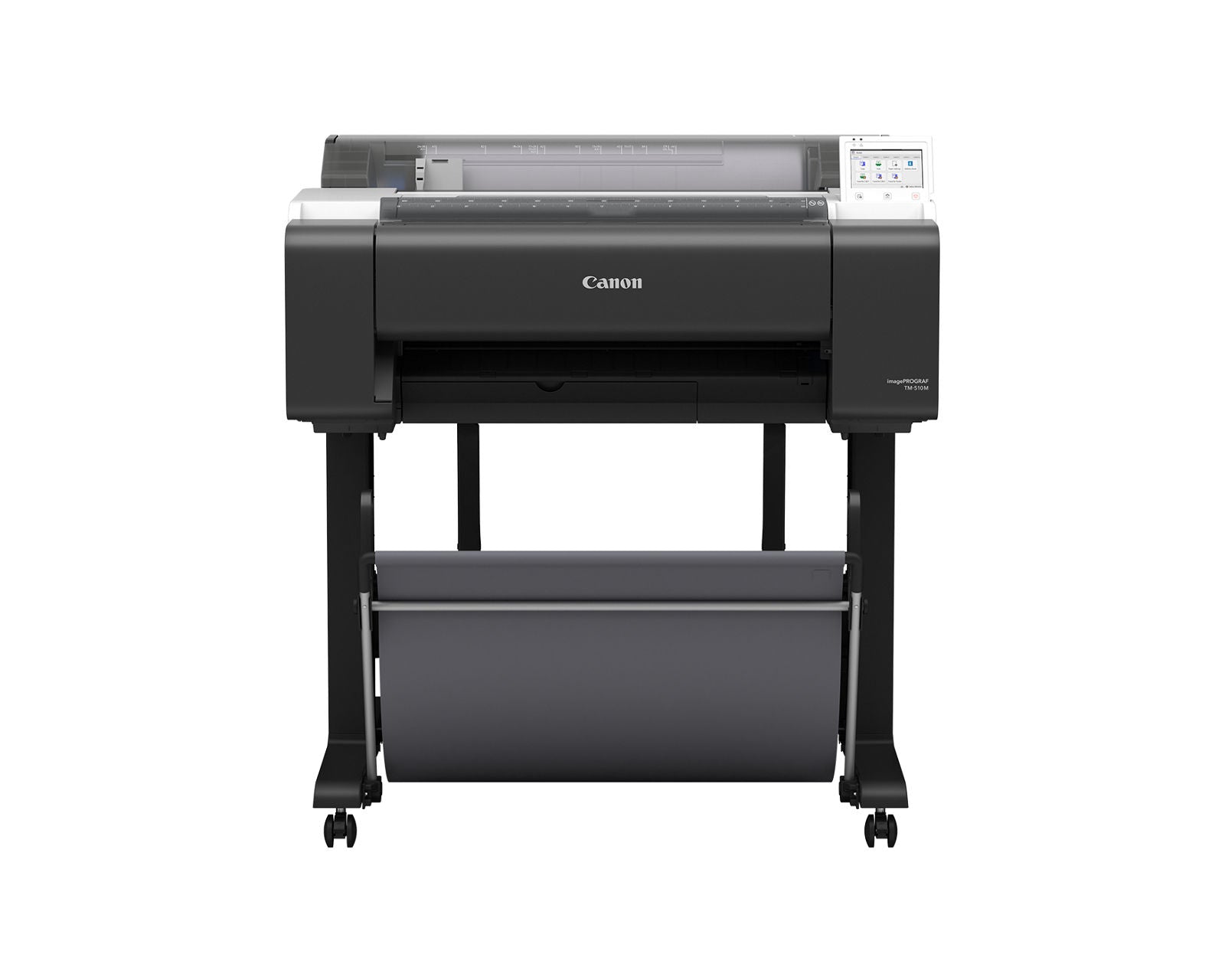

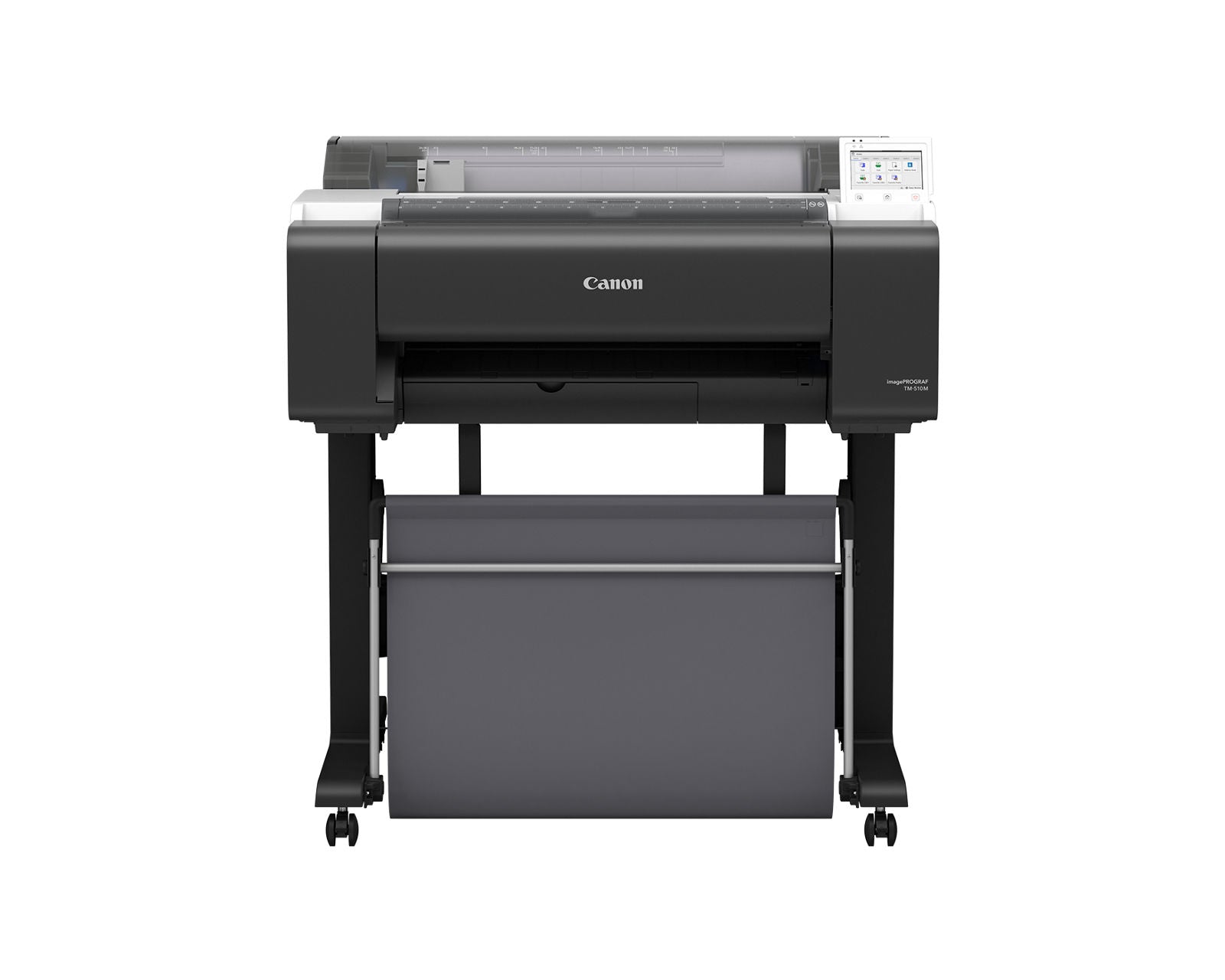

Canon imagePROGRAF TM-510M 24-inch Multifunction Printer with Integrated Scanner
7446C002AA
Regular price $4,999.00 Sale price $4,229.00 Save $770.00Print, scan, and copy technical documents from one compact system. The Canon imagePROGRAF TM-510M delivers 24-inch color output for CAD plans, blueprints, maps, and posters. Its integrated scanner supports document capture and copying through a customizable control panel. A/E Graphics is a Canon authorized dealer.
Designed for plans and everyday graphics
- Produce up to 2.9 D-size prints per minute.*
- Five-color LUCIA TD pigment inks and updated matte black help render fine lines, legible text, and vivid graphics.
- Operate print and scan functions on a customizable 5-inch tilting touchscreen.
- Front access and a flat-top body simplify paper loading and supply changes.
- Color calibration and automatic media detection support consistent daily operation.
Features
Integrated scanning and copying
Capture documents at up to 10 inches per second in monochrome or 5 inches per second in color.** Send scans to USB memory, email, or SMB. Presets support CAD, tracing paper, blueprints, posters, photos, and maps.
LUCIA TD pigment color
Pigment-based colors support durable output. Updated matte black is formulated for defined technical lines and graphics.
Clear linework and text
Refined image processing helps preserve detail in drawings and enhance poster output.
Consistent color
Calibration helps maintain repeatable color over time and across compatible TM Series devices.
Convenient CAD production
Fast document output supports architecture, engineering, and construction teams.
Device and network protection
Security capabilities help control access and protect information; effectiveness depends on configuration and environment.
Comfortable operation
Front access puts paper and supplies within reach; the tilting display makes settings easy to view.
Automatic media detection
After paper is fed, detected media type, width, and estimated remaining roll length appear on screen.
Technical specifications
| Maximum print width | 24 in. |
|---|---|
| Print speed | Up to 2.9 ANSI D pages/min.* |
| Print resolution | Up to 2400 × 1200 dpi |
| Ink system | Five-color LUCIA TD pigment: MBK, BK, C, M, Y |
| Memory | 2 GB RAM |
| Printhead nozzles | 15,360 total |
| Touchscreen | 5-inch tilting, customizable |
| Connectivity | USB 2.0 Hi-Speed, Gigabit Ethernet, Wi-Fi 802.11 b/g/n |
| Starter ink volumes | 130 ml MBK; 90 ml each BK/C/M/Y |
| Replacement ink capacities | 130 ml or 300 ml |
| Output basket | Stackable basket |
| Roll holder | 2-inch holder with 3-inch adapters |
| Scanner | Integrated large-format scanner |
| Maximum optical scan resolution | 600 dpi |
| Maximum scan / document width | 24 in. / 24.5 in. |
| Minimum scan width | 6 in. |
| Scan speed at 200 dpi | Up to 5 ips color / 10 ips monochrome** |
| Maximum scan length at 200 dpi | JPEG: 326.9 in.; PDF: 200 in. |
| Maximum scanner media thickness | 0.8 mm |
| Scan destinations | USB memory, email, SMB |
| USB memory file systems | FAT16, FAT32, exFAT |
Included with the system
Main unit with integrated scanner; stackable basket; printhead; starter inks (130 ml matte black, 90 ml each black/cyan/magenta/yellow); installed maintenance cartridge; 2-inch roll holder with 3-inch adapters; power cable and screw; installation, registration, printer/printhead warranty, safety, and software documentation.
Software and mobile printing
Direct Print Plus supports convenient batch printing, while Free Layout Plus arranges output and Accounting Manager monitors ink and media use. Canon also provides PosterArtist and Media Configuration Tool. AirPrint and Mopria work with compatible devices and network setups; check current drivers for operating-system compatibility.
PosterArtist
Create posters with browser-based design templates.
Large-format media
Choose compatible media for drawings and graphics.
Warranty and service
Printer warranty: Canon lists a one-year printer warranty statement with this model. Coverage follows the supplied Canon warranty terms.
Printhead coverage: A separate printhead warranty statement is included. Refer to that statement for its coverage period, usage limits, and conditions.
Optional extended service: Eligible imagePROGRAF eCarePAK plans can extend coverage to as much as five years total, depending on the plan selected. Extended service is sold separately.
Canon TM-510M support and warranty information
Environmental certifications
Canon identifies the model as EPEAT Gold registered in the U.S. and ENERGY STAR certified.
Canon resources
*Canon measures 2.9 ANSI D pages/minute after the first print in Fast Q5 mode on plain paper. Actual throughput varies with media, orientation, settings, and copy quantity. **Scanner speed is measured at 200 dpi under Canon's specified plain-paper CAD test conditions. Illustrations may show other configurations or simulated output. Specifications may change.
