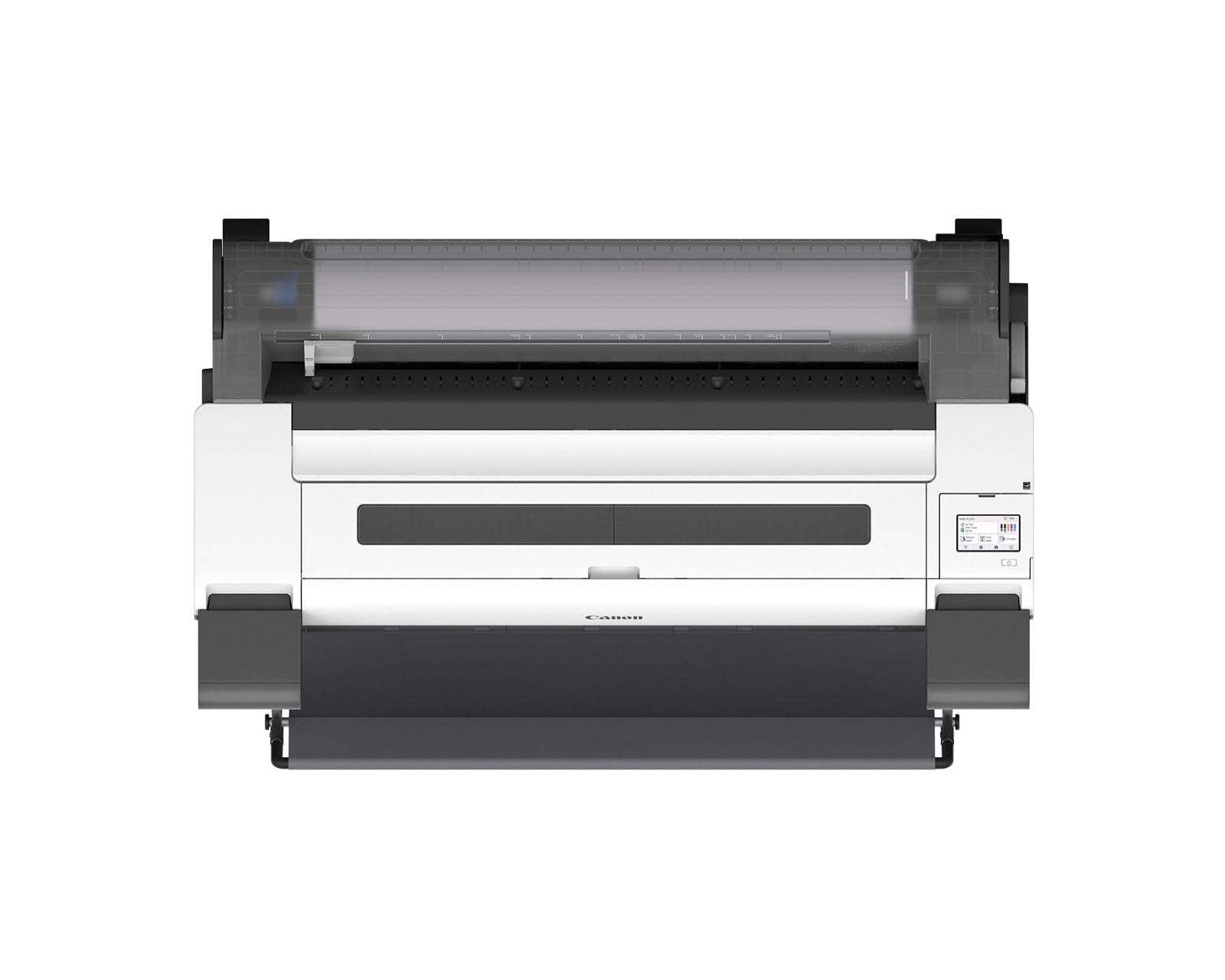

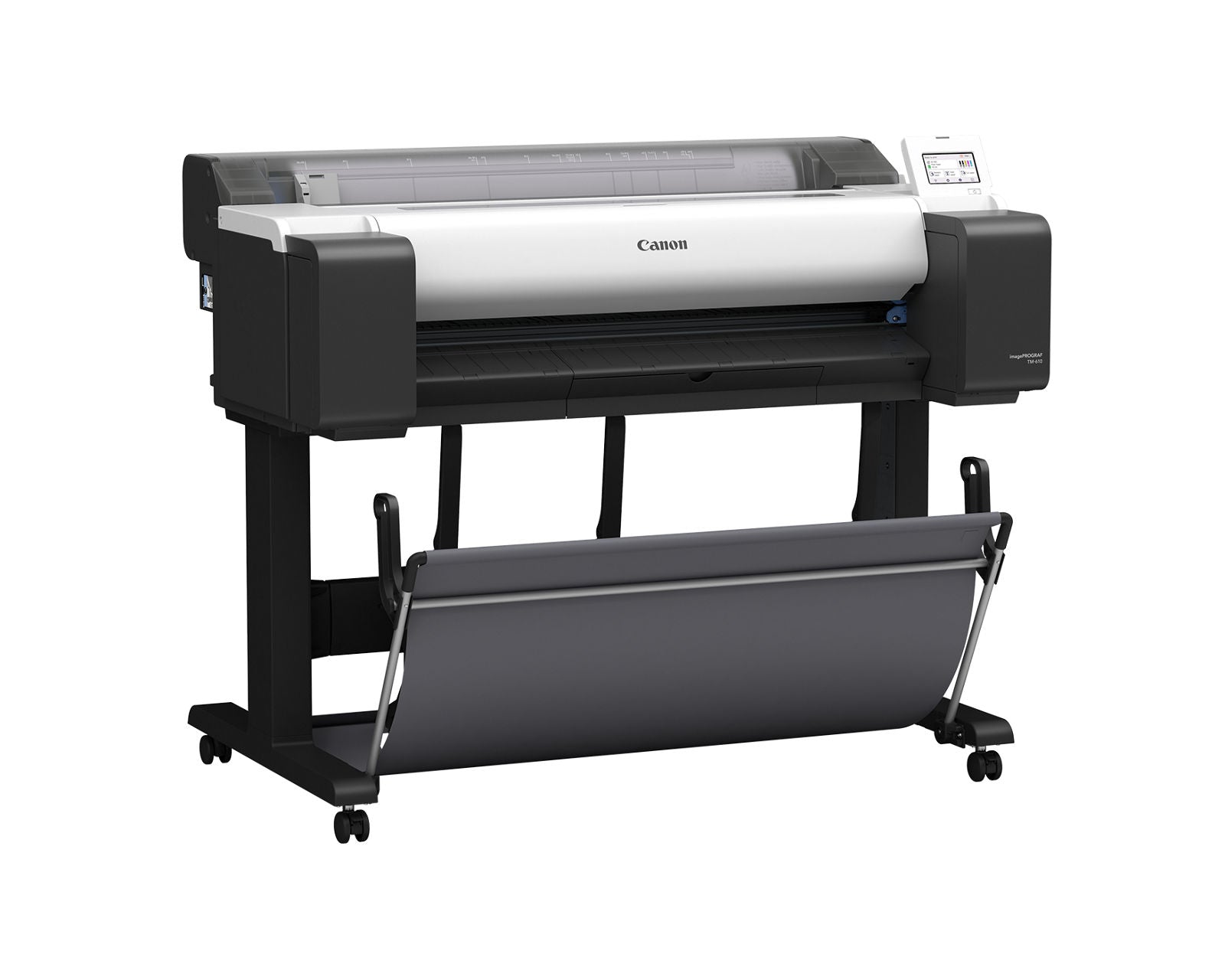

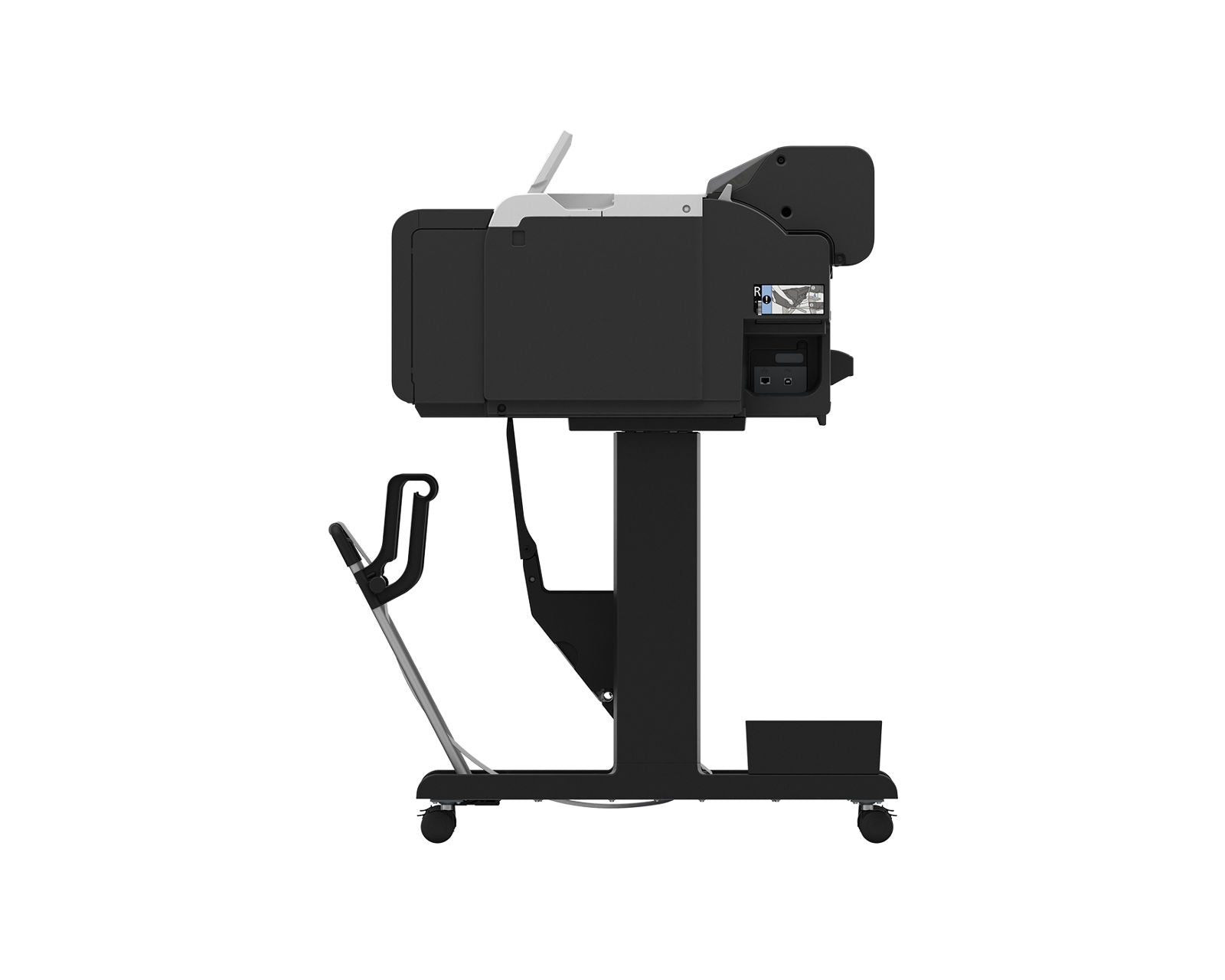

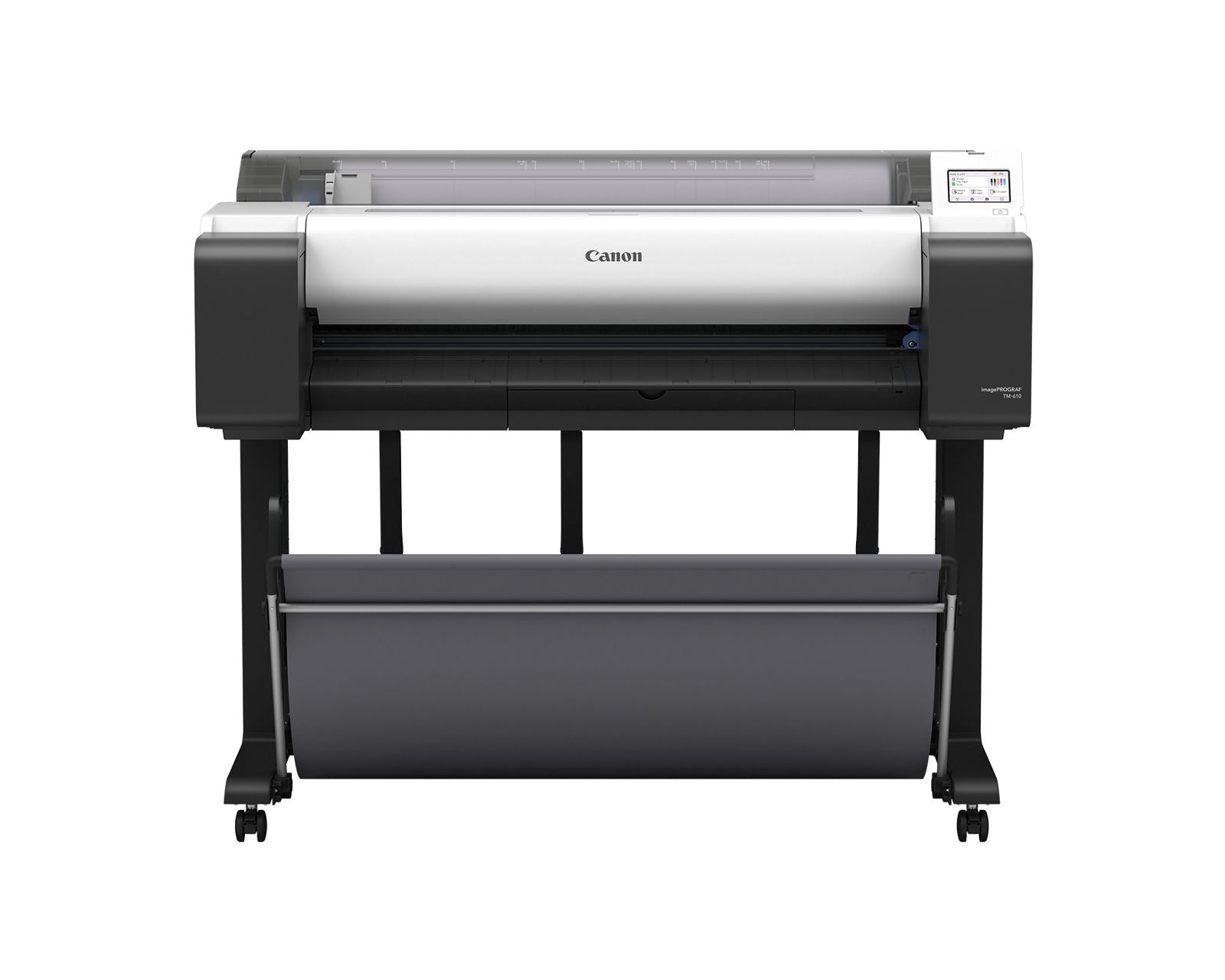

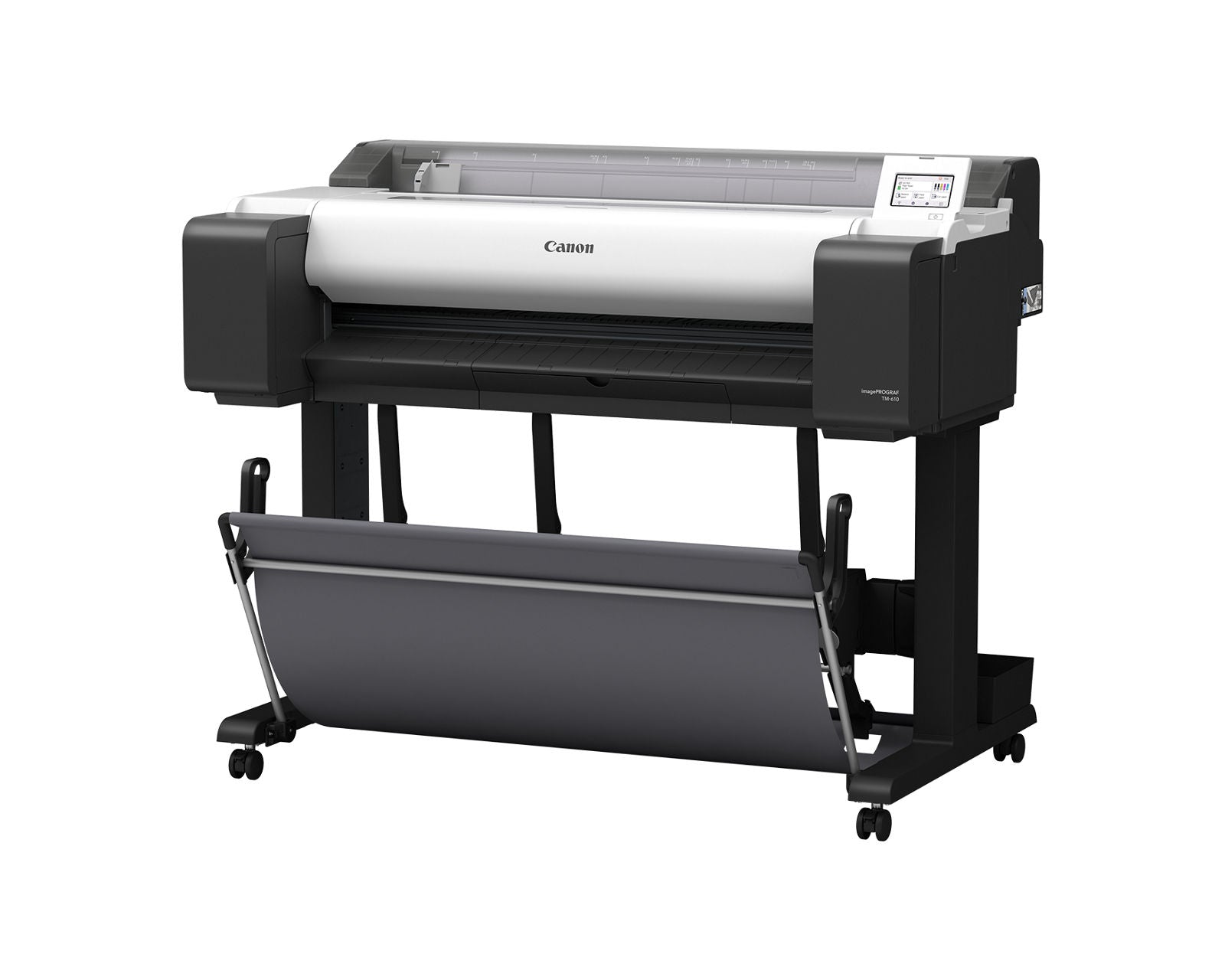

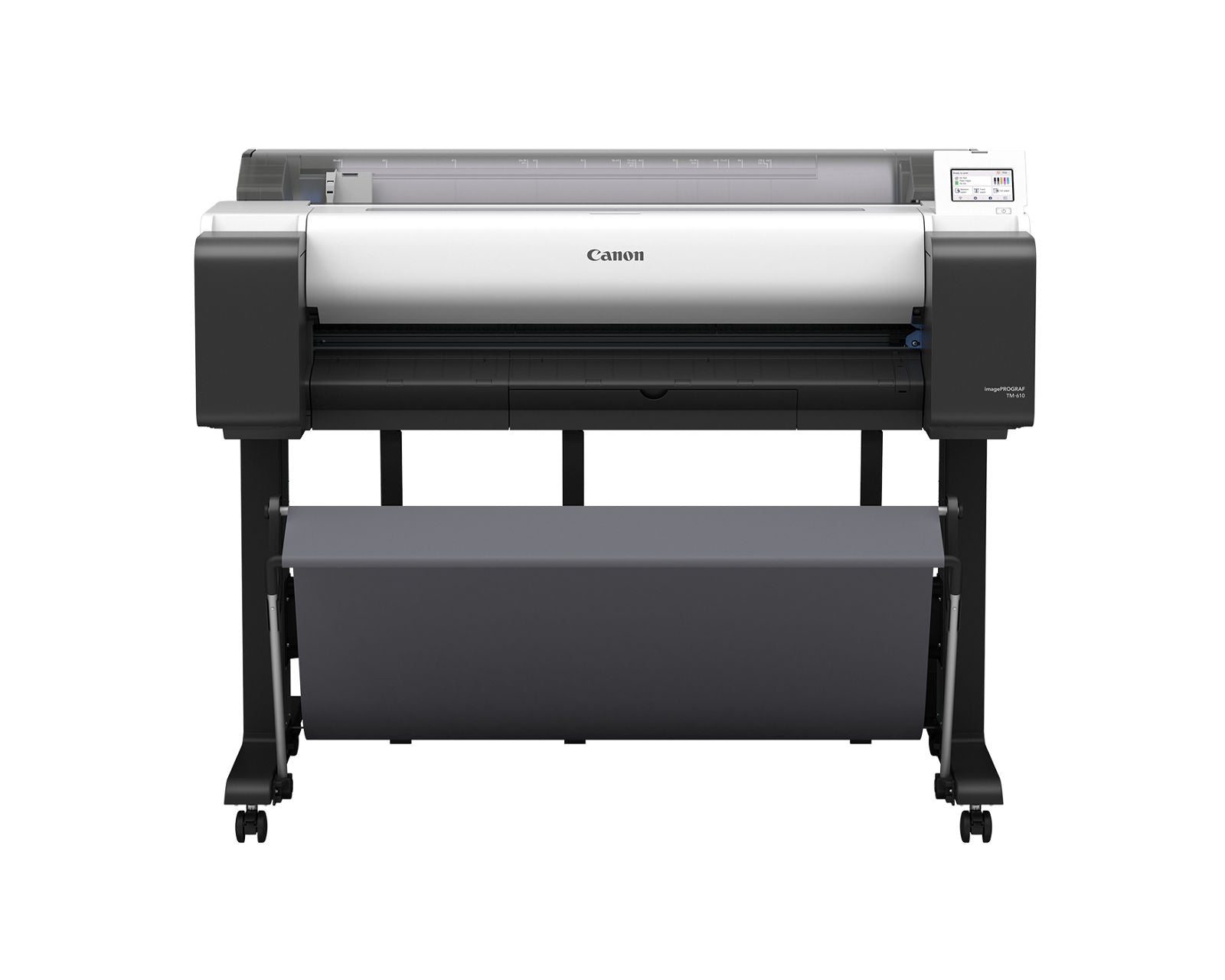

Canon imagePROGRAF TM-610 36-inch Large Format Printer
7454C002AA
Regular price $4,999.00 Sale price $4,349.00 Save $650.00Bring large-format technical printing into your office. The Canon imagePROGRAF TM-610 delivers 36-inch color output for CAD plans, blueprints, maps, and posters. A/E Graphics is a Canon authorized dealer.
Designed for plans and everyday graphics
- Produce up to 3.2 D-size prints per minute.*
- Five-color LUCIA TD pigment inks and updated matte black help render fine lines, legible text, and vivid graphics.
- Adjust printer settings on the 4.3-inch tilting touchscreen.
- Front access and a flat-top body simplify paper loading and supply changes.
- Color calibration and automatic media detection support consistent daily operation.
Features
LUCIA TD pigment color
Pigment-based colors support durable output. Updated matte black is formulated for defined technical lines and graphics.
Clear linework and text
Refined image processing helps preserve detail in drawings and enhance poster output.
Consistent color
Calibration helps maintain repeatable color over time and across compatible TM Series devices.
Convenient CAD production
Fast document output supports architecture, engineering, and construction teams.
Device and network protection
Security capabilities help control access and protect information; effectiveness depends on configuration and environment.
Comfortable operation
Front access puts paper and supplies within reach; the tilting display makes settings easy to view.
Automatic media detection
After paper is fed, detected media type, width, and estimated remaining roll length appear on screen.
Technical specifications
| Maximum print width | 36 in. |
|---|---|
| Print speed | Up to 3.2 ANSI D pages/min.* |
| Print resolution | Up to 2400 × 1200 dpi |
| Ink system | Five-color LUCIA TD pigment: MBK, BK, C, M, Y |
| Memory | 2 GB RAM |
| Printhead nozzles | 15,360 total |
| Touchscreen | 4.3-inch tilting |
| Connectivity | USB 2.0 Hi-Speed, Gigabit Ethernet, Wi-Fi 802.11 b/g/n |
| Starter ink volumes | 130 ml MBK; 90 ml each BK/C/M/Y |
| Replacement ink capacities | 130 ml or 300 ml |
| Output basket | Stand with stand with stackable basket |
| Roll holder | 2-inch holder with 3-inch adapters |
| Printhead / droplet size | PF-06 / 5 picoliters |
| Media feed | Single roll, top loading, front output |
| Media width | 8–36 in. (roll or cut sheet) |
| Media thickness | 0.07–0.8 mm |
| Maximum print length | 59 ft. roll; 5.2 ft. cut sheet (depends on OS/application) |
| Maximum roll diameter | 5.9 in. (150 mm) |
| Cutter | Automatic rotary cutter; replacement CT-08 |
| Maintenance cartridge | MC-31 |
| Print languages | SGRaster, HP-GL/2, HP RTL, JPEG, CALS G4 |
| Dimensions with basket open (W × D × H) | 50.6 × 34.2 × 41.0 in. |
| Approximate printer weight | 138.9 lb. |
| Power consumption | Approx. 65 W maximum; 1.6 W standby; 0.06 W off |
| Replacement ink families | PFI-123 MBK / PFI-120 BK/C/Y / PFI-121 M (130 ml); PFI-323 / PFI-320 / PFI-321 (300 ml) |
Included with the system
Main unit; stand with stackable basket; printhead; starter inks (130 ml matte black, 90 ml each black/cyan/magenta/yellow); installed maintenance cartridge; 2-inch roll holder with 3-inch adapters; power cable and screw; installation, registration, printer/printhead warranty, safety, and software documentation.
Software and mobile printing
Direct Print Plus supports convenient batch printing, while Free Layout Plus arranges output and Accounting Manager monitors ink and media use. Canon also provides PosterArtist and Media Configuration Tool. AirPrint and Mopria work with compatible devices and network setups; check current drivers for operating-system compatibility.
PosterArtist
Create posters with browser-based design templates.
Large-format media
Choose compatible media for drawings and graphics.
Warranty and service
Printer warranty: Canon lists a one-year printer warranty statement with this model. Coverage follows the supplied Canon warranty terms.
Printhead coverage: A separate printhead warranty statement is included. Refer to that statement for its coverage period, usage limits, and conditions.
Optional extended service: Eligible imagePROGRAF eCarePAK plans can extend coverage to as much as five years total, depending on the plan selected. Extended service is sold separately.
Canon TM-610 support and warranty information
Environmental certifications
Canon identifies the model as EPEAT Gold registered in the U.S. and ENERGY STAR certified.
Canon resources
*Canon measures 3.2 ANSI D pages/minute after the first print in Fast Q5 mode on plain paper. Actual throughput varies with media, orientation, settings, and copy quantity. Illustrations may show other configurations or simulated output. Specifications may change.
