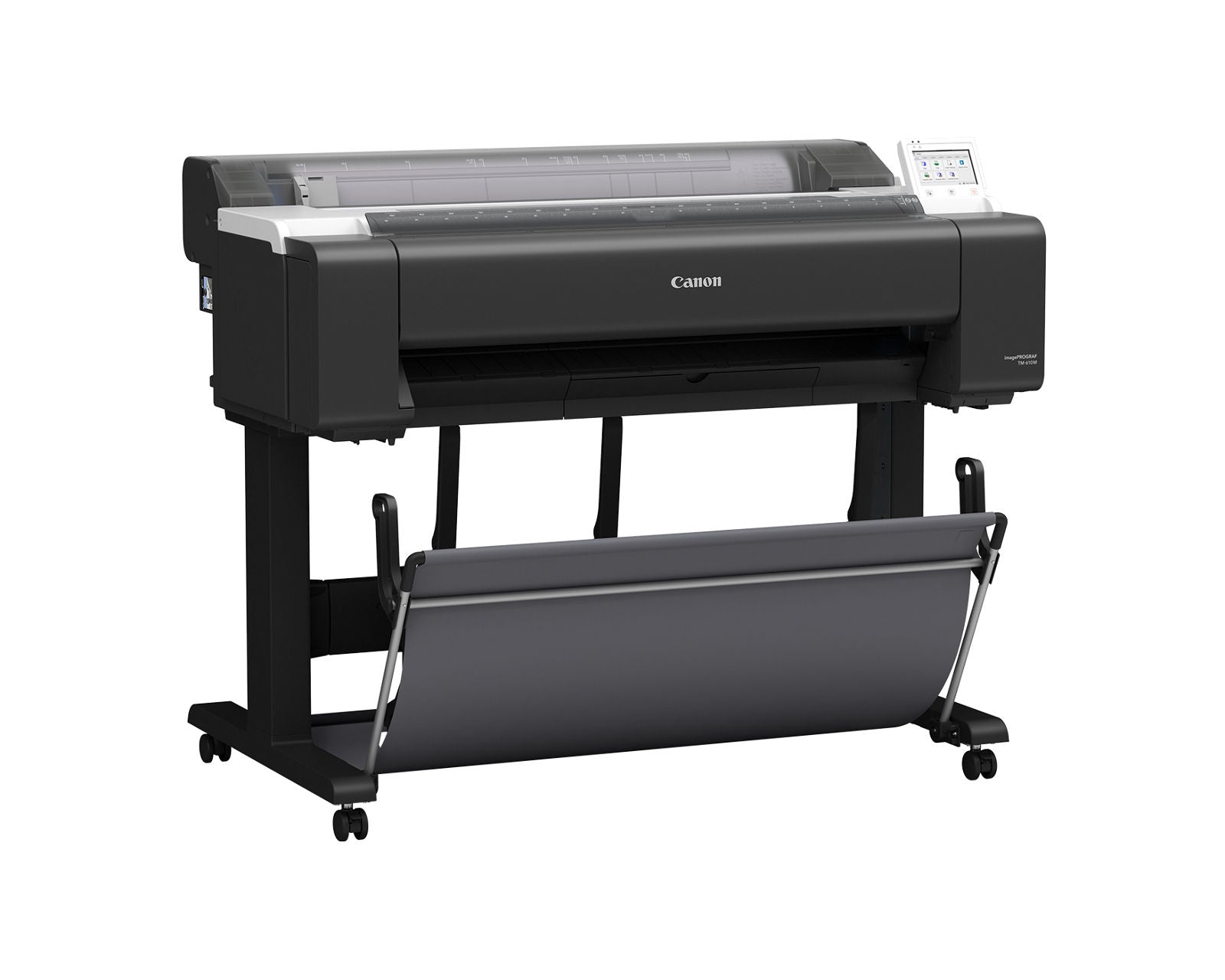

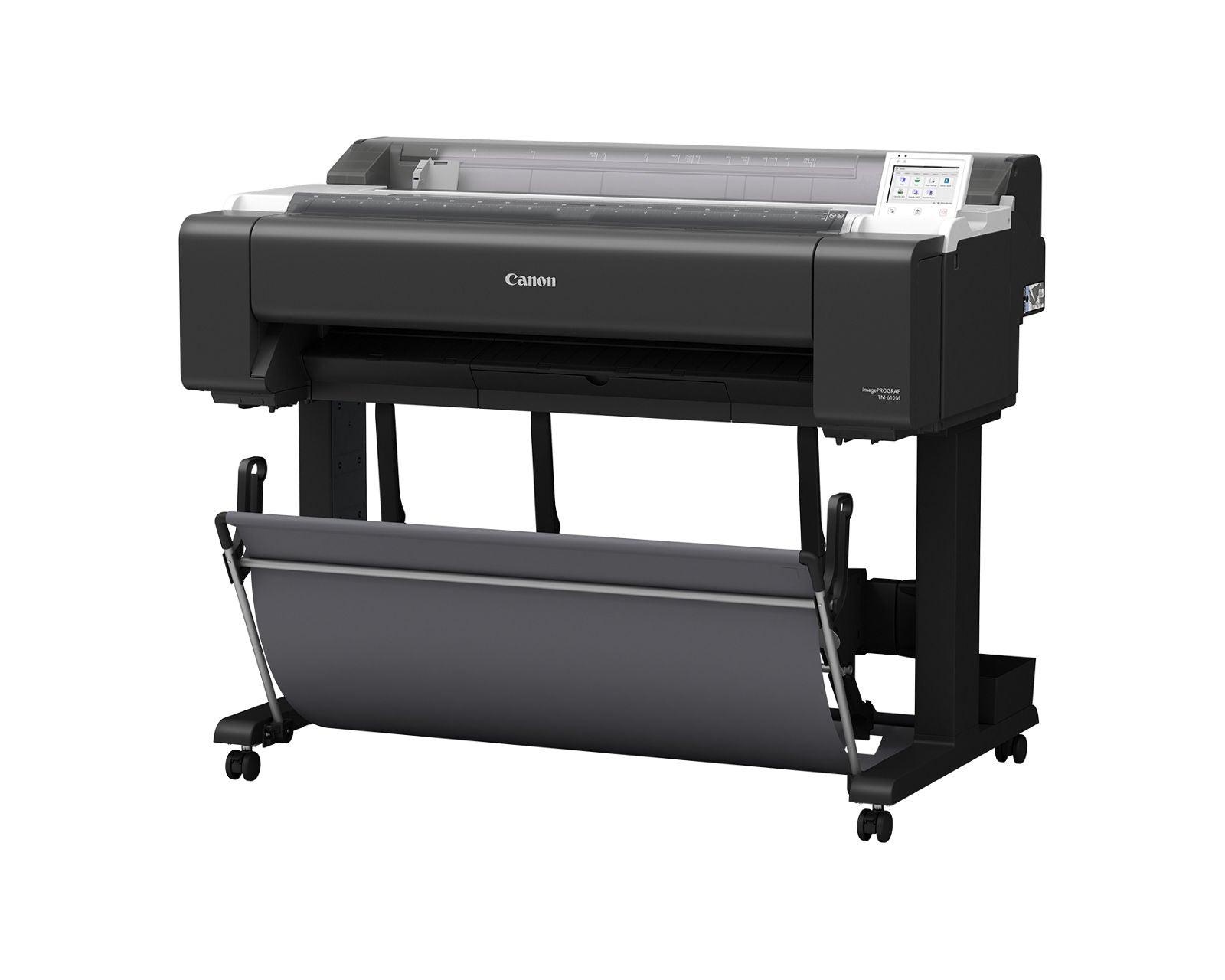

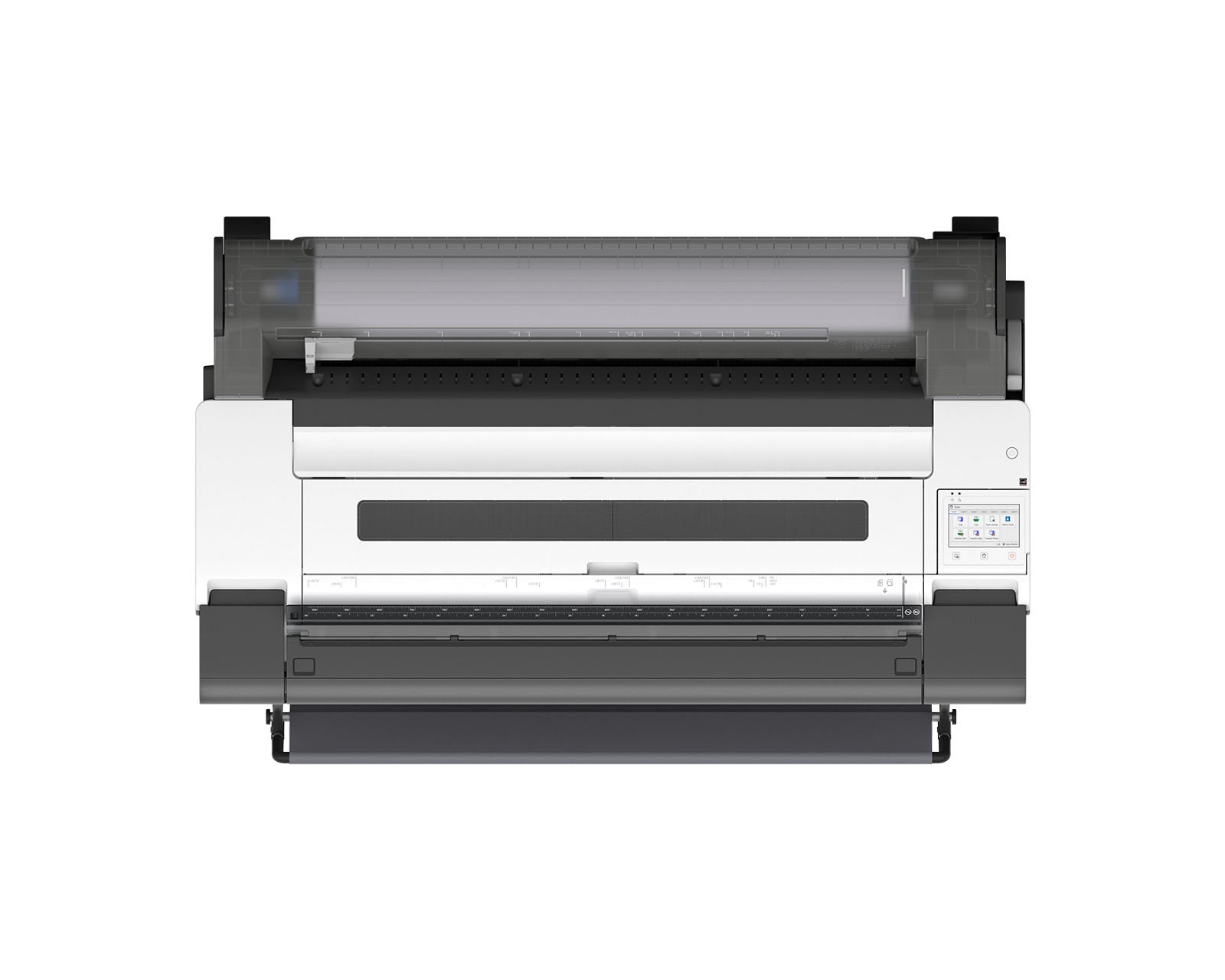

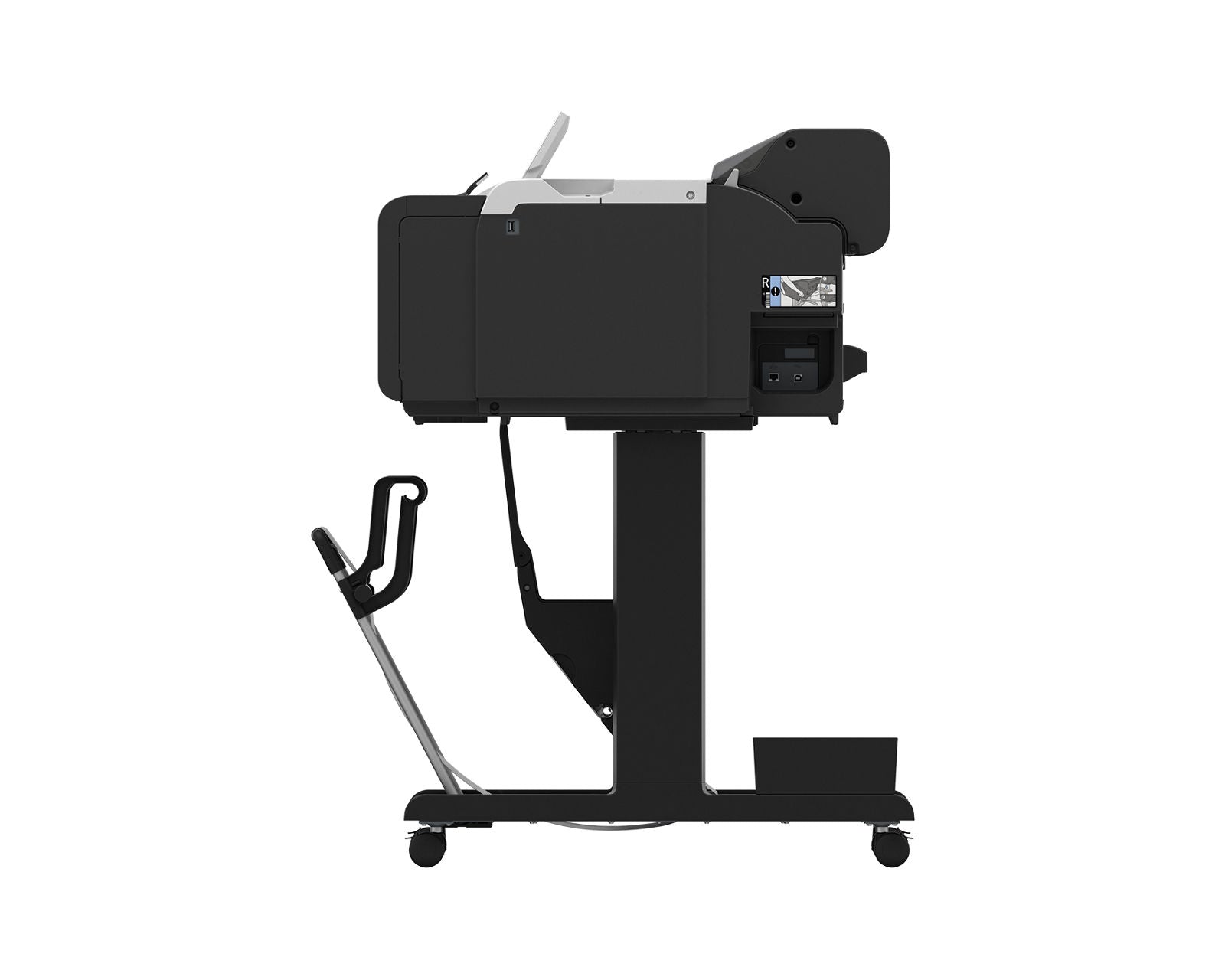

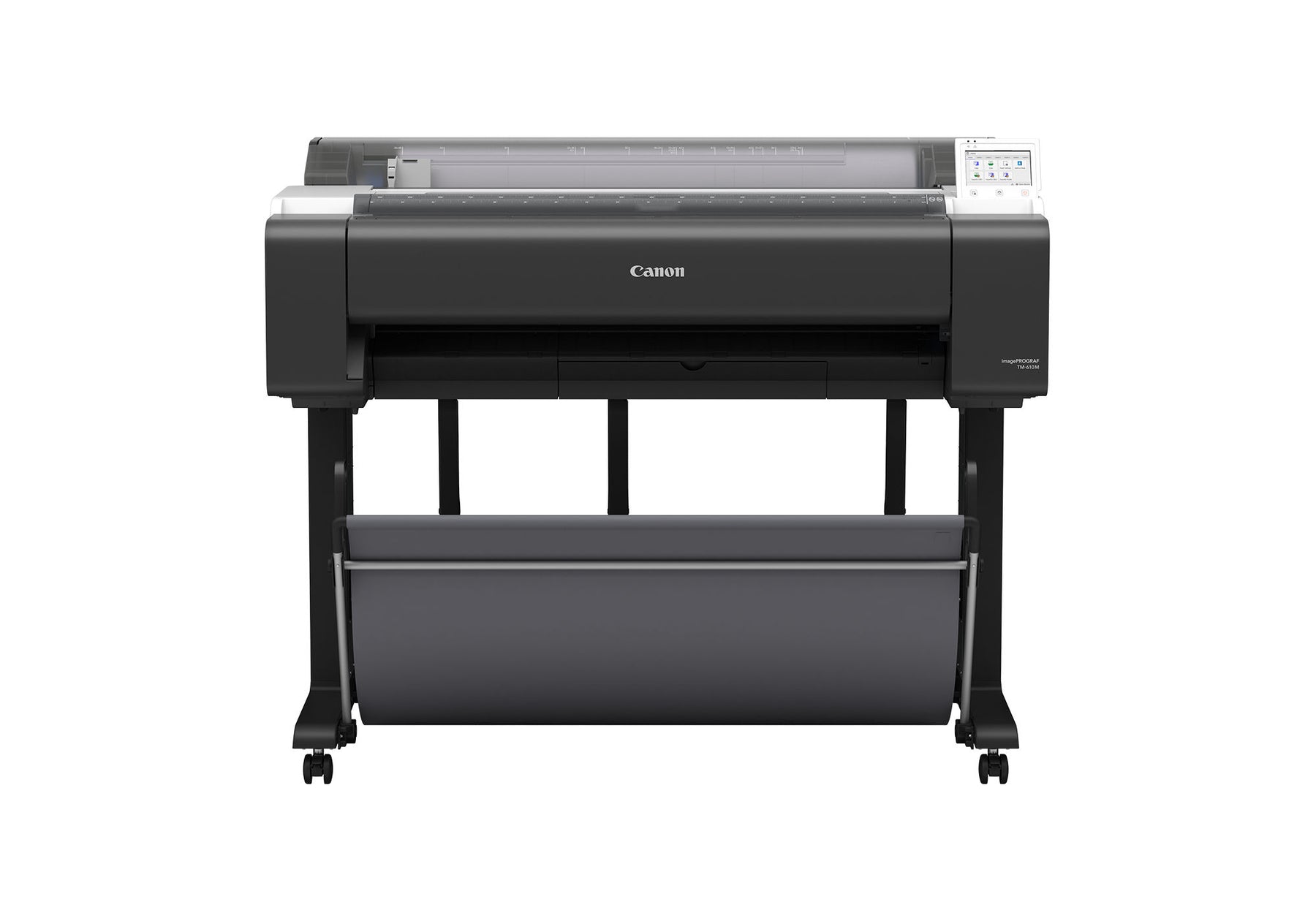

Canon imagePROGRAF TM-610M 36-inch Multifunction Printer with Integrated Scanner
7447C002AA
Regular price $7,749.00Print, scan, and copy large-format drawings from one compact system. The Canon imagePROGRAF TM-610M combines a 36-inch color printer with a built-in scanner for CAD plans, blueprints, maps, and posters. A/E Graphics is a Canon authorized dealer.
Built for technical documents and everyday graphics
- Produce up to 3.2 D-size prints per minute.*
- Digitize originals at up to 10 inches per second in monochrome or 5 inches per second in color.**
- Five-color LUCIA TD pigment inks and updated matte black help render fine lines, legible text, and vivid graphics.
- Operate printing and scanning through a customizable, tilting 5-inch touchscreen.
- Load rolls from the flat top and access consumables from the front.
Features
Integrated scanning
Create copies or send scans to USB, email, or SMB. Presets cover CAD, blueprints, tracing paper, photos, and maps.
LUCIA TD pigment inks
Pigment-based colors support durable output; replacement tanks are available in 130 ml and 300 ml sizes.
Clear drawings and graphics
Refined image processing supports detailed technical output and poster work.
Consistent color
Calibration helps maintain repeatable color across time and compatible TM Series devices.
Efficient plan production
Fast document output suits architecture, engineering, and construction workflows.
Device and network protection
Security capabilities help control access and protect information; results depend on configuration and environment.
Front-access operation
Reach ink, media, and maintenance supplies without rear access.
Automatic media detection
The printer identifies loaded media characteristics and displays them on screen.
Technical specifications
| Print / scan width | 36 in. / 36 in. |
|---|---|
| Print resolution | Up to 2400 × 1200 dpi |
| Print speed | Up to 3.2 ANSI D pages/min.* |
| Ink technology | Five pigment colors: MBK, BK, C, M, Y |
| Memory / printhead | 2 GB / PF-06 |
| Printer media | Rolls and sheets, 8–36 in. wide |
| Printer media thickness | 0.07–0.8 mm |
| Maximum print length | Roll: 59 ft.; sheet: 5.2 ft. |
| Roll core / diameter | 2 or 3 in. / up to 5.9 in. |
| Paper handling | Single top-loaded roll; automatic rotary cutter; stackable basket |
| Connectivity | USB 2.0, Gigabit Ethernet, Wi-Fi 802.11 b/g/n |
| Print languages | SGRaster, HP-GL/2, HP RTL, JPEG, CALS G4 |
| Dimensions, basket open | 50.6 W × 34.2 D × 41 H in. |
| Dimensions, basket closed | 50.6 W × 29.8 D × 41 H in. |
| TM-610M weight | Approximately 165.3 lb. |
| Packaged size / weight | 57.6 × 35.9 × 30.3 in. / 253.5 lb. |
| Power supply / use | AC 100–240 V, 50–60 Hz / approximately 76 W maximum |
| Scanner optical resolution | Up to 600 dpi |
| Scanner speed at 200 dpi | Color: 5 ips; monochrome: 10 ips** |
| Color copy speed | As fast as 66 seconds** |
| Scanner document width | Up to 36.5 in. |
| Scanner document thickness | 0.07–0.8 mm |
| Maximum scan length at 200 dpi | JPEG: 326.9 in.; PDF: 200 in. |
| Scanner technology | CIS; dual illumination |
| Scan destinations | USB memory, email, SMB |
| Copy quantity / zoom | Up to 99 / 25–432% |
Included with the system
Printer and integrated scanner; stand with stackable basket; PF-06 printhead; starter inks (130 ml MBK, 90 ml each BK/C/M/Y); installed maintenance cartridge; roll holder and 3-inch adapters; power cable; installation, registration, warranty, safety, and software documentation.
Software and mobile printing
Canon provides Direct Print Plus, Free Layout Plus, PosterArtist, Accounting Manager, Device Management Console, and Media Configuration Tool. AirPrint and Mopria support compatible devices and network configurations. Check current drivers for operating-system compatibility.
PosterArtist
Create posters from browser-based templates.
Media choices
Use compatible Canon media for drawings and graphics.
Consumables and optional service
Replacement inks: MBK PFI-123/PFI-323; BK/C/Y PFI-120/PFI-320; M PFI-121/PFI-321. Service items: PF-06 printhead, MC-31 maintenance cartridge, CT-08 blade. Optional RH2-35 roll holder and eCarePAK coverage are sold separately.
Environmental certifications
Canon identifies the model as EPEAT Gold registered in the U.S. and ENERGY STAR certified.
Canon resources
*Canon measures 3.2 ANSI D pages/minute after the first print in Fast Q5 mode on plain paper; actual throughput varies with settings and media. **Scan/copy measurements use Canon's specified 200-dpi CAD/plain-paper test conditions; color copy timing uses A1 size and standard quality. Illustrations may show other configurations or simulated output. Specifications may change.
