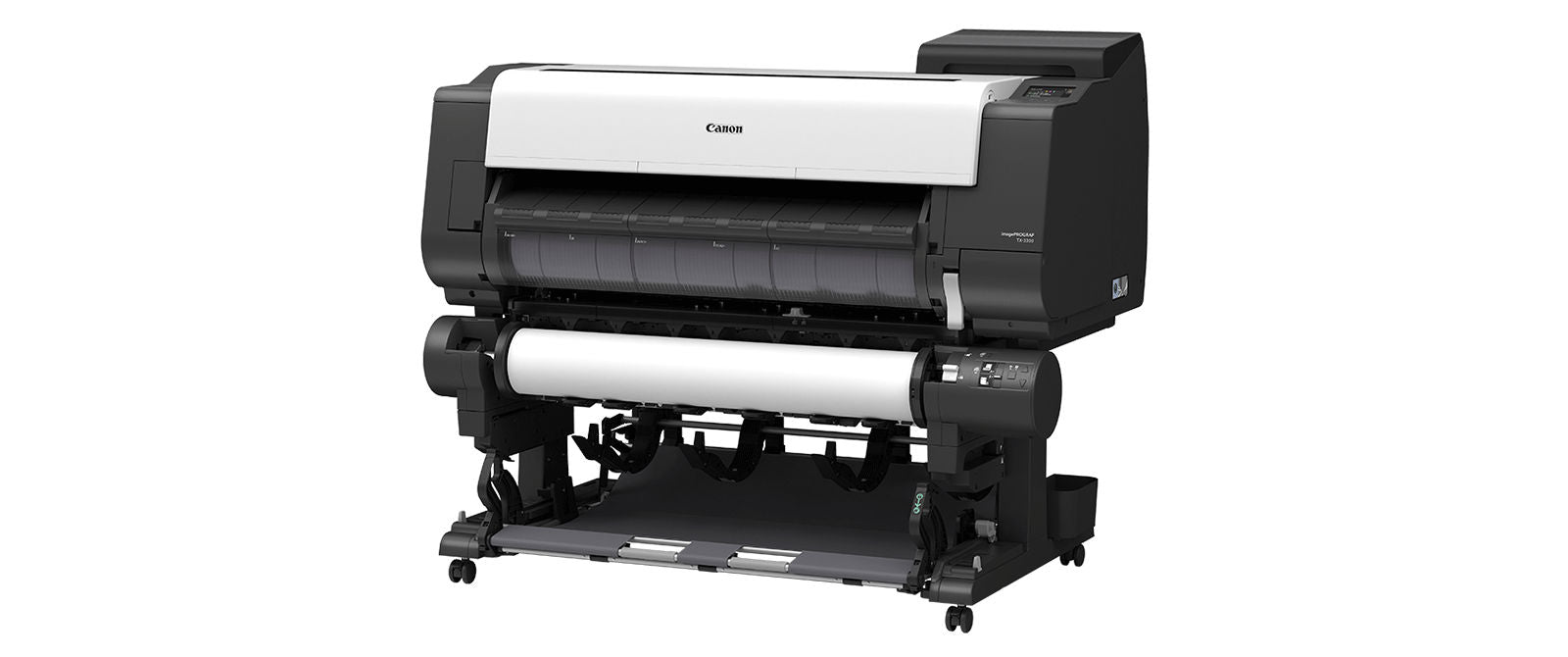

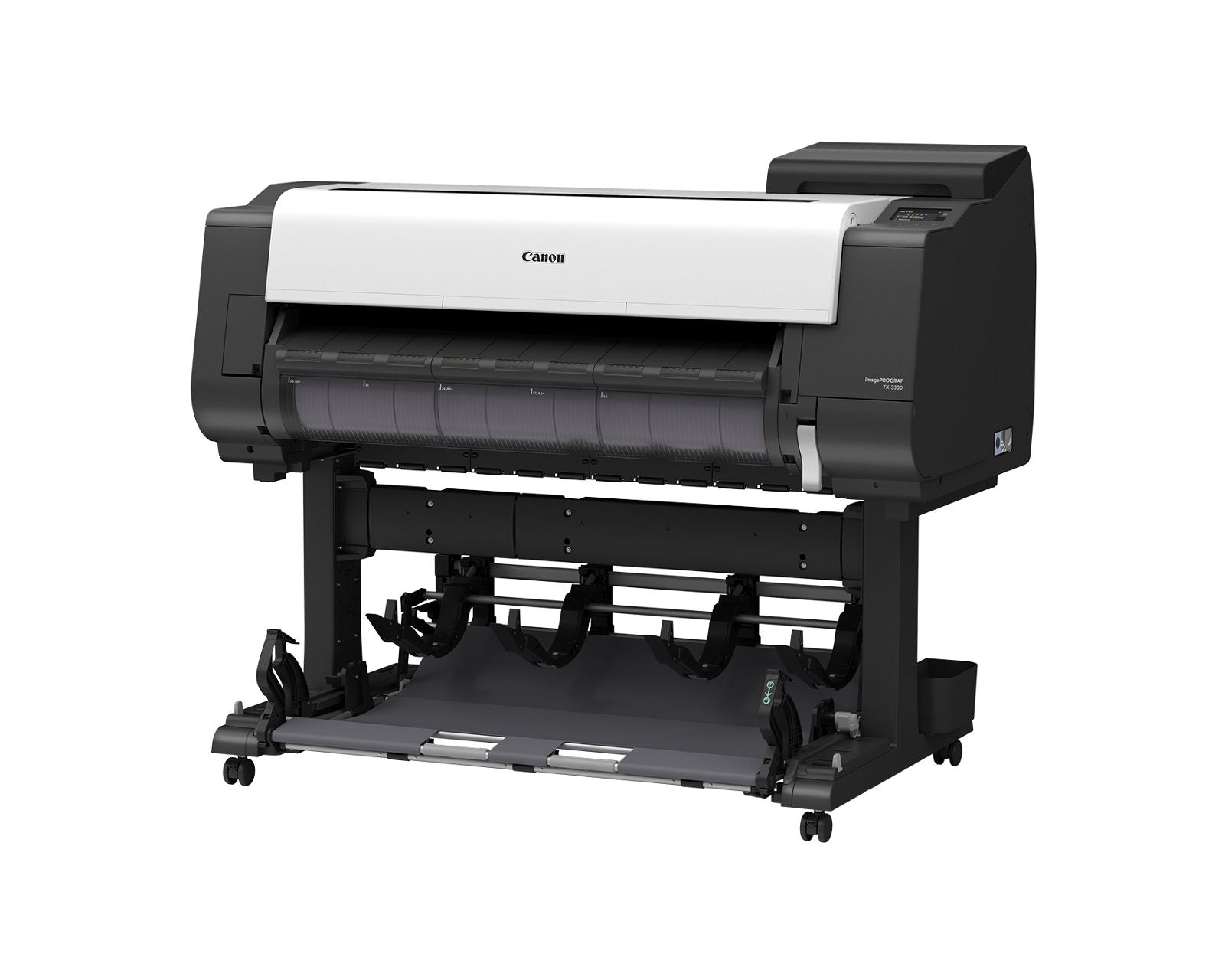

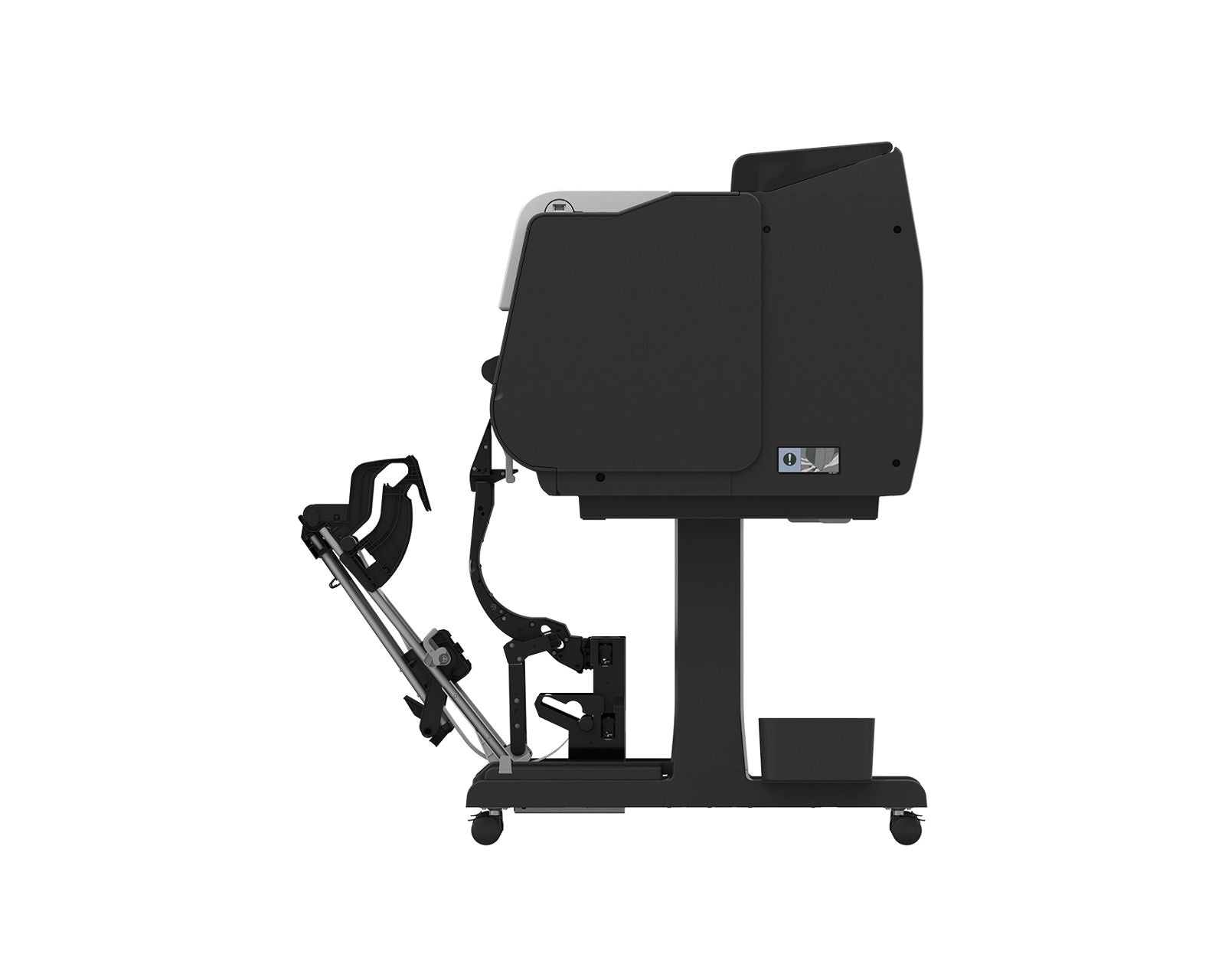

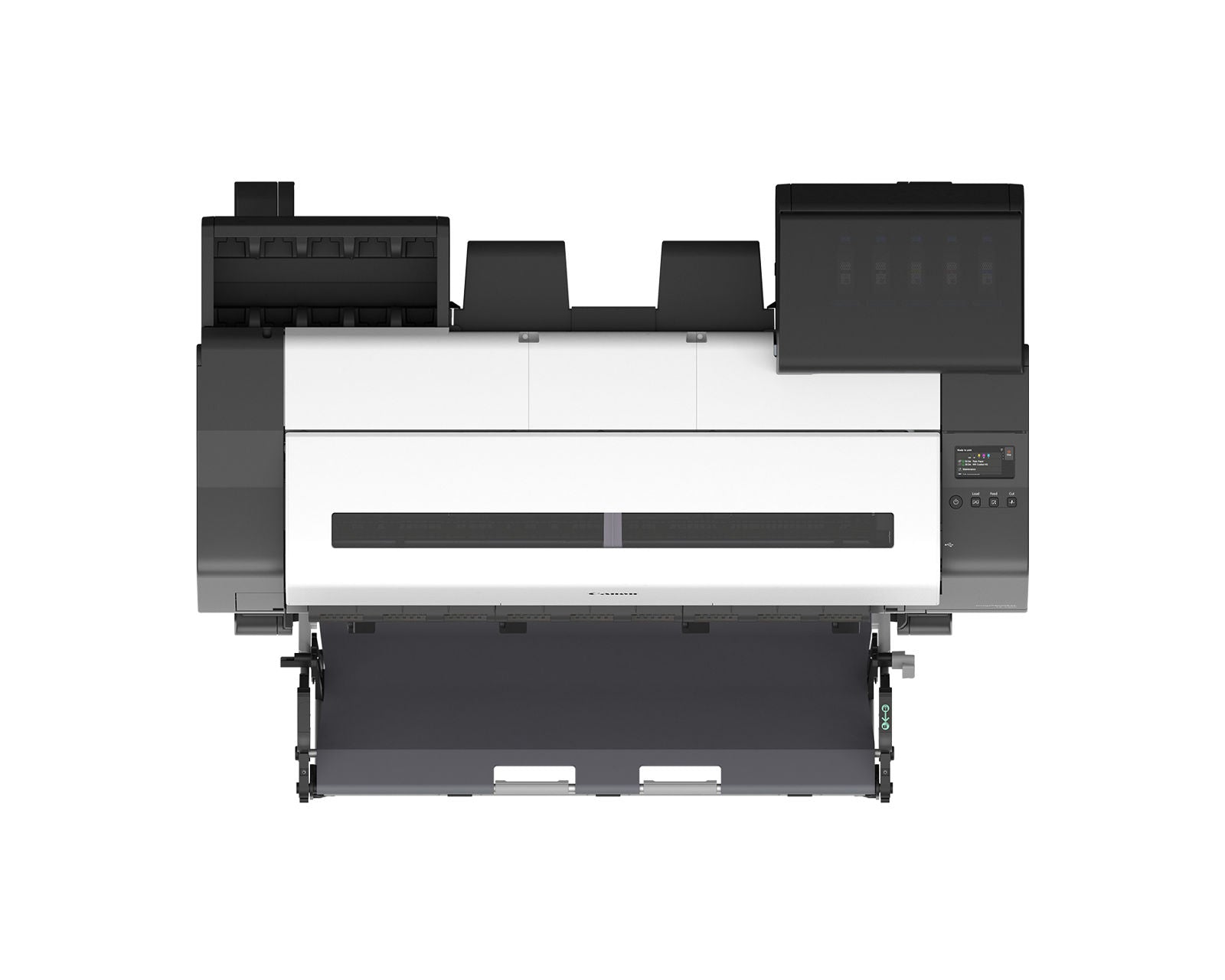

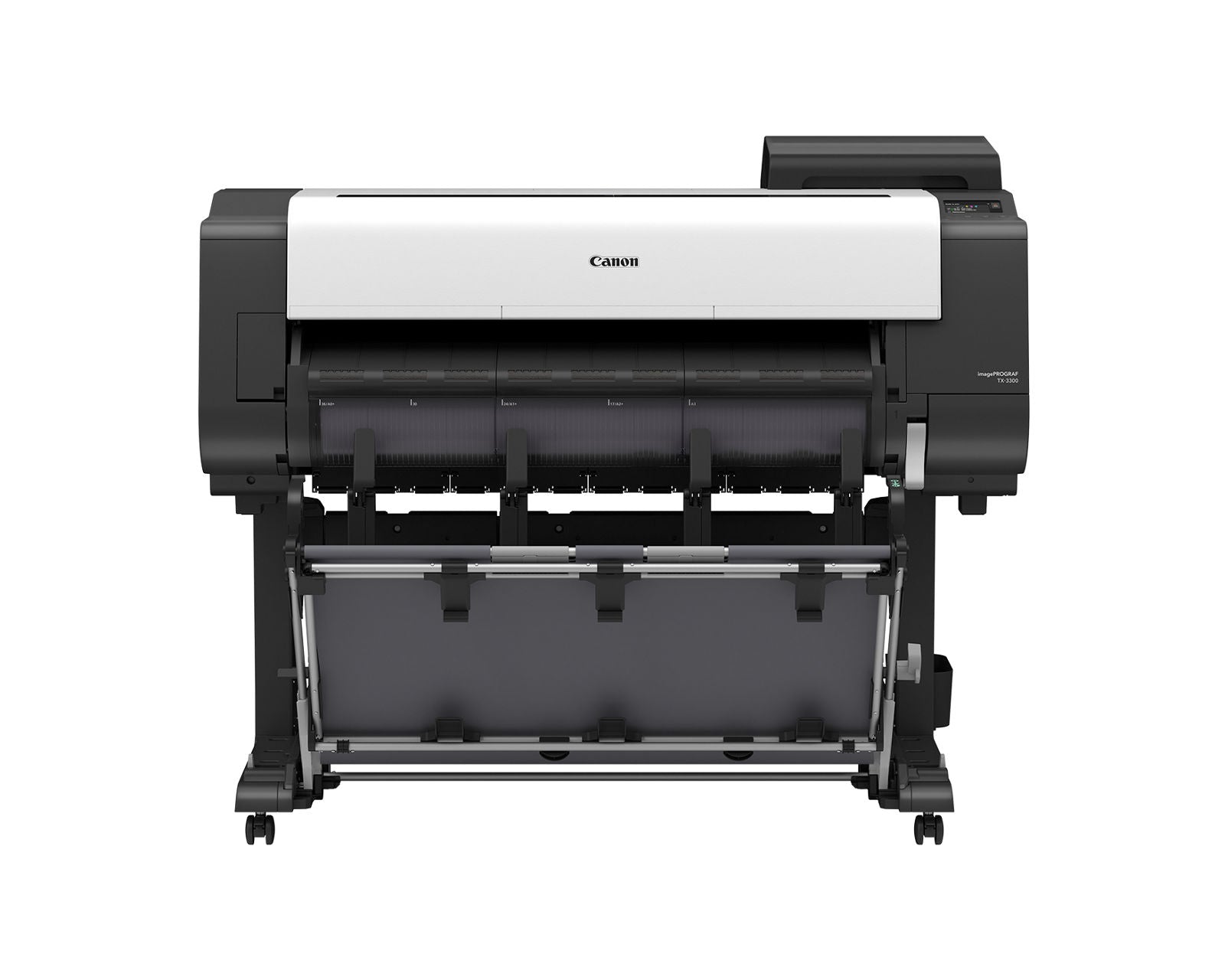

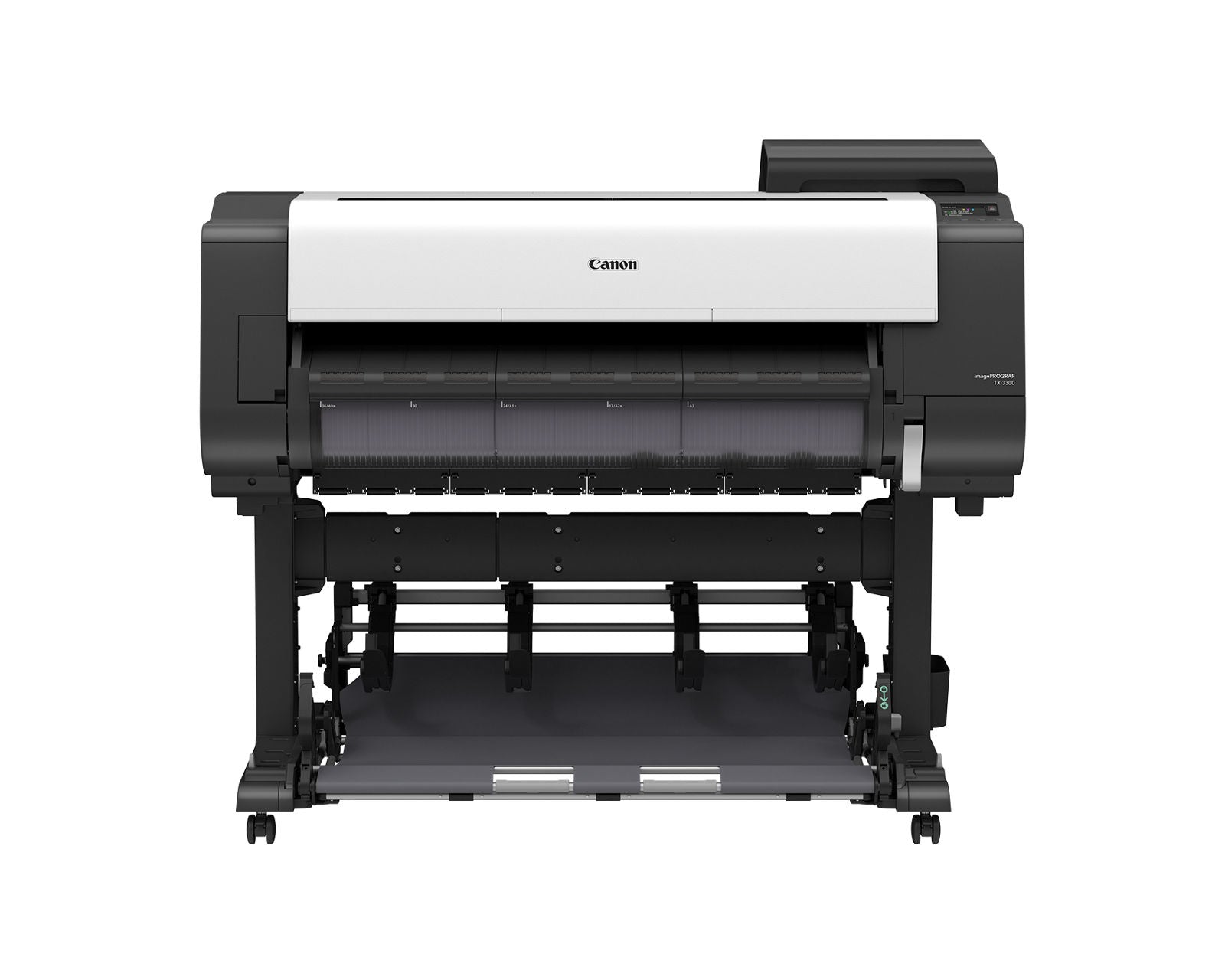

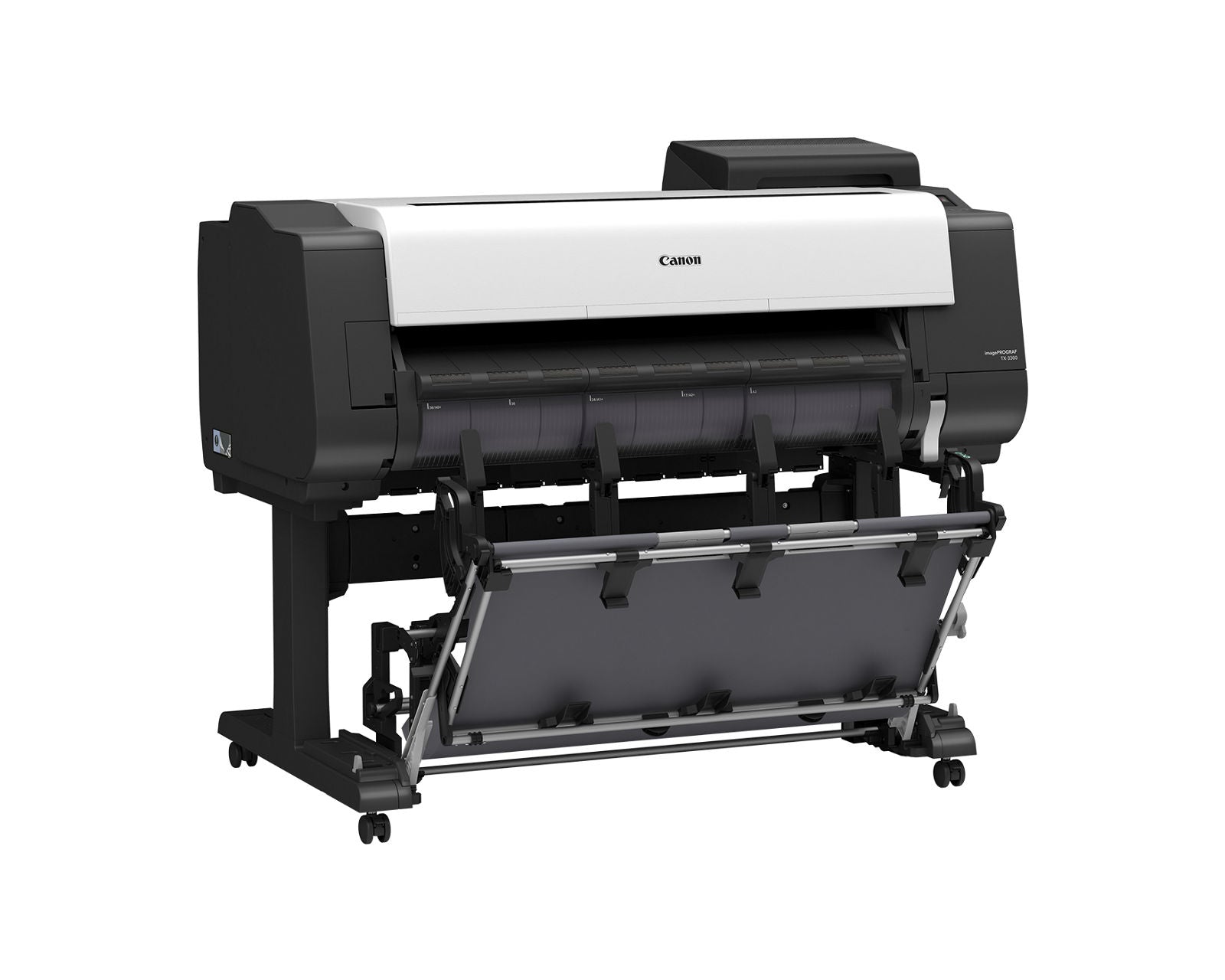

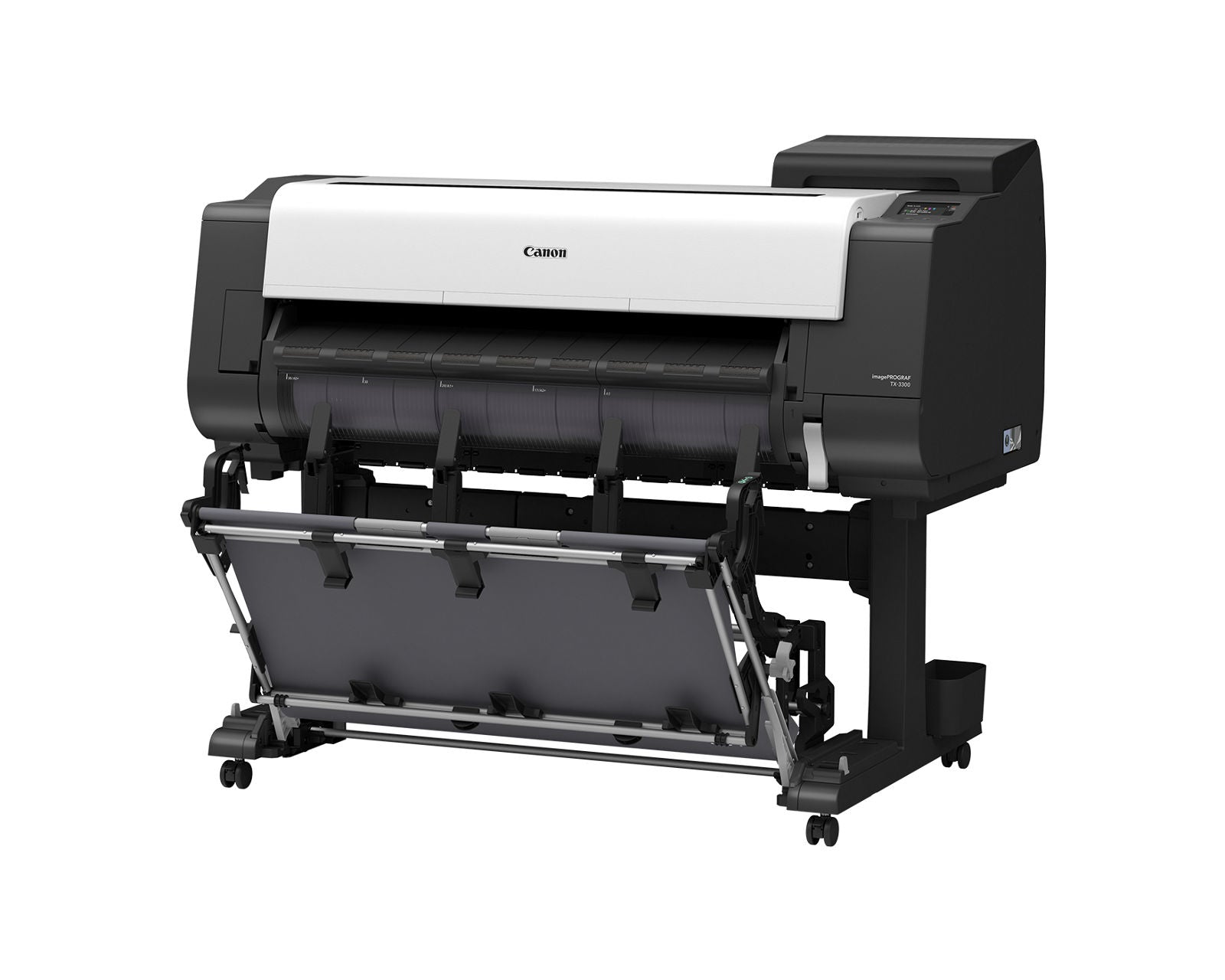

Canon imagePROGRAF TX-3300 36-inch Large Format Printer
7572C011AA
Regular price $7,835.00 Sale price $7,240.00 Save $595.00Keep technical documents moving through your office. The Canon imagePROGRAF TX-3300 delivers 36-inch color printing for CAD drawings, blueprints, maps, posters, and engineering documents. A/E Graphics is a Canon authorized dealer.
Designed for productive CAD workflows
- Print up to 3.3 ANSI D pages per minute.*
- Five-color LUCIA TD pigment inks, including updated matte black, support detailed linework and vivid plain-paper graphics.
- Built-in color calibration helps keep output consistent.
- 2 GB physical memory and a 256 GB hard drive support document processing.
- SS-31 TX Stacker with stand included.
- Hot-swap ink tanks, semi-translucent supply covers, and user-installable printheads and maintenance cartridges.
Features
LUCIA TD pigment ink
Five pigment colors support durable technical drawings and graphics, with reformulated matte black for defined lines and text.
Fine lines and clear text
Refined image processing helps preserve drawing detail and produce readable CAD documents.
Consistent color
Printer calibration supports repeatable color over time and across compatible TX Series printers.
Print productivity
Produce up to 3.3 ANSI D sheets per minute in Canon's stated test conditions.*
Device and network security
TLS 1.3, 802.1X, SNMP v3, Secure Boot, HDD encryption, and secure erase help protect jobs and device access. Configure security for your network and workflow.
Convenient daily operation
Check supplies through semi-translucent covers, change ink while printing, and replace the printhead or maintenance cartridge as needed.
Media handling
Smart Roll Paper Set feeds the leading edge automatically and detects media type, width, and estimated remaining length.
Optional multifunction roll unit
Add a compatible roll unit for a second media roll or use it as a take-up reel. This accessory is sold separately.
Printer specifications
| Maximum print width | 36 in. |
|---|---|
| Print speed | Up to 3.3 ANSI D pages/min.* |
| Maximum resolution | 2400 × 1200 dpi |
| Ink system | Five-color LUCIA TD pigment: MBK, BK, C, M, Y |
| Printhead / total nozzles | PF-06 / 15,360 |
| Ink droplet size | 5 picoliters |
| Memory and storage | 2 GB physical RAM; 256 GB HDD |
| Connectivity | USB 2.0 Hi-Speed, Gigabit Ethernet, Wi-Fi 802.11 b/g/n |
| Starter inks | 330 ml MBK; 160 ml each BK/C/M/Y |
| Replacement ink capacities | 160 ml, 330 ml, or 700 ml; 700 ml availability limited to service-authorized partners |
| Output handling | SS-31 TX Stacker with stand |
| Roll holder | 2-inch holder with 3-inch adapters |
| Print languages | SGRaster, HP-GL/2, HP RTL, PDF, JPEG, CALS G4 |
| Media width | 6–36 in. |
| Media thickness | 0.07–0.8 mm |
| Maximum roll diameter | 6.7 in. (170 mm) |
| Maintenance cartridge | MC-30 |
| Replacement cutter | CT-07 |
| Media feed | Single roll, front loading, front output; optional RU-34 second roll/take-up unit |
| Maximum print length | 59 ft. roll; 63 in. cut sheet (depends on OS/application) |
| Line accuracy | ±0.1% or less under Canon's specified adjustment, media and environmental conditions |
| Minimum line weight | 0.02 mm theoretical value |
Included with the system
Main printer unit; ss-31 tx stacker with stand; PF-06 printhead; starter ink set (330 ml MBK; 160 ml each BK/C/M/Y); installed maintenance cartridge; 2-inch roll holder with 3-inch adapters; power cable and screw; installation, registration, printer/printhead warranty, safety, media compatibility, software and service documentation.
Software and workflow
Canon provides Direct Print Plus for batch output, Free Layout Plus for nesting and page arrangement, PosterArtist for template-based poster design, Accounting Manager for ink/media tracking, and Media Configuration Tool for managing media profiles. Refer to Canon's current downloads for operating-system compatibility. PRISMAproduce Tech is an additional workflow option; confirm licensing and configuration separately.
PosterArtist
Create posters with Canon's web-based templates.
Large-format media
Select compatible papers and specialty media for technical drawings and graphics.
Warranty and service
Printer coverage: Canon includes a printer warranty statement with this model. Coverage and eligibility follow the supplied Canon warranty terms.
Printhead coverage: A separate printhead warranty statement is included; refer to it for the applicable period, usage limits, and conditions.
Optional extended service: Eligible imagePROGRAF eCarePAK plans can extend coverage to as much as five years total, depending on the selected plan. Extended service is sold separately.
Environmental certifications
Canon identifies the printer as EPEAT Gold registered in the U.S. and ENERGY STAR certified, with EPS-free packaging and increased recycled material in the chassis.
Canon resources
*Print speed measured after the first print in Fast Q5 mode on plain paper. Actual throughput varies with media, orientation, settings, and copy quantity. Illustrations may show optional accessories, other configurations, or simulated output. Specifications may change.
